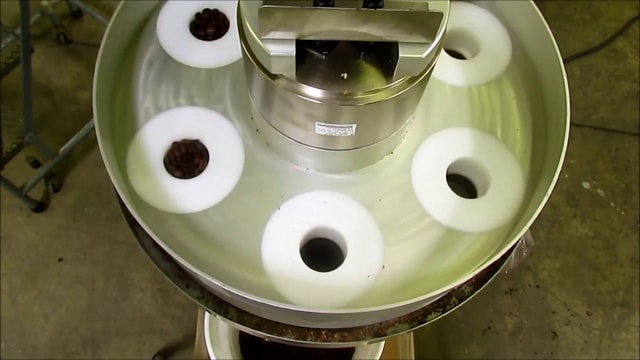

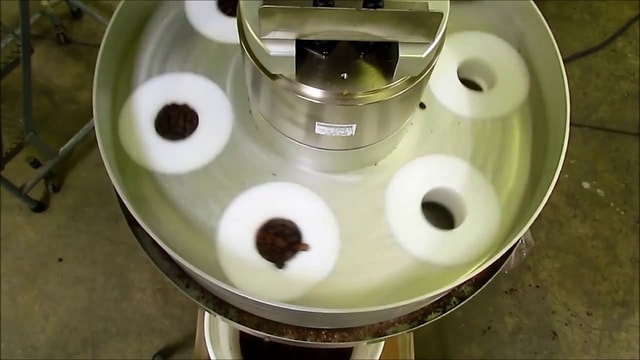

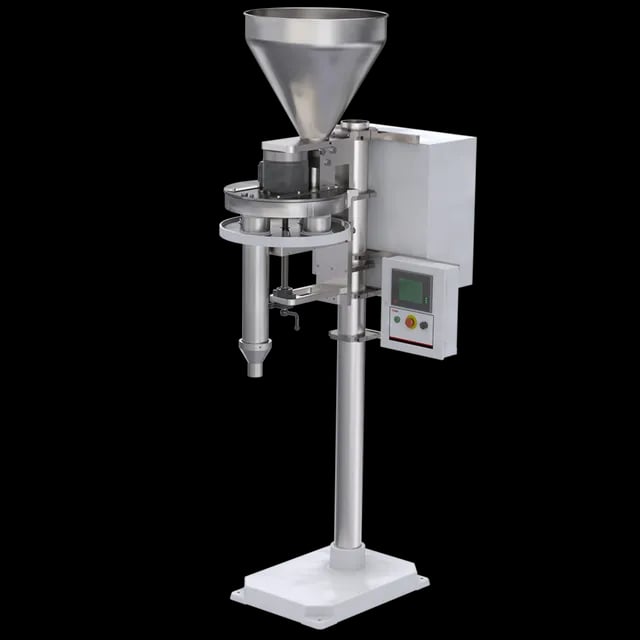

The SC/Series cup filler can accurately dispense free-flow products such as rice, popcorn, pecans, seeds, candy and more. Fill weights from .25oz to 15lbs can be achieved at speeds up to 120 per minute. Easily removable volume cups and servo position control are standard features on this line

Get a quote

Specifications

  • Construction
    Painted aluminum base, anodized aluminum, stainless steel contact parts, stainless construction available
  • Production Rates
    Speeds ranging up to 120 CPM, depending on amount of cups
  • Controls

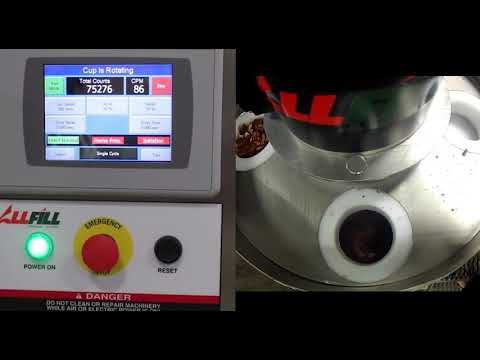

    Embedded controller, 7.00" color touch screen HMI, foot pedal initiation
  • Control Features
    Individual control of all settings. Alphanumeric product naming. Containers per minute readout. Users / Maintenance / Supervisor Login. Statistical analysis of a shift run.
  • Hopper Capacity
    Supply hopper capacity of 16 gal., other options available: hopper extensions and covers
  • Changeovers
    Thumbscrews for quick access to product contact
  • Machine Dimensions
    Need from engineering-standard VCSV600 dims
  • Storage
    100 product memory
  • Electrical Requirements
    220V/1ph/60HZ (standard other voltages available)
  • Pneumatic Requirements
    None
  • Options
    Vibratory pan infeed. Single or dual discharge. Servo cup position control. Conveyor with indexing/automation may require container lift. Nylon coating and dimpled contact surfaces. Statistical package (USB). Various washdown and sanitary designs. Variety of fill accessories. Nozzles or chutes. Additional cups for increased production. Product level control to signal infeed device. Hopper cover. Integration with OEM. 316 stainless steel contact and quick removal parts available. Bag clamp.

All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.

Common Applications

  • Almonds

  • Wood Pellets

  • Whole Bean Coffee

  • Tobacco Products

  • Raisins

  • Hop Pellets

  • Pecans

  • Beans & Legumes

  • Peas

  • Pet Food

  • Coated Candy

  • Fertilizers

  • Plant Foods

  • Plastic Granules

  • Chocolate Chips

  • Pretzel Nuggets

  • Coated Gummies

  • Grains

  • Pasta Products

  • Seeds

  • Whole Peppercorns

  • Rice Products

  • Chickpeas

  • Lentils
