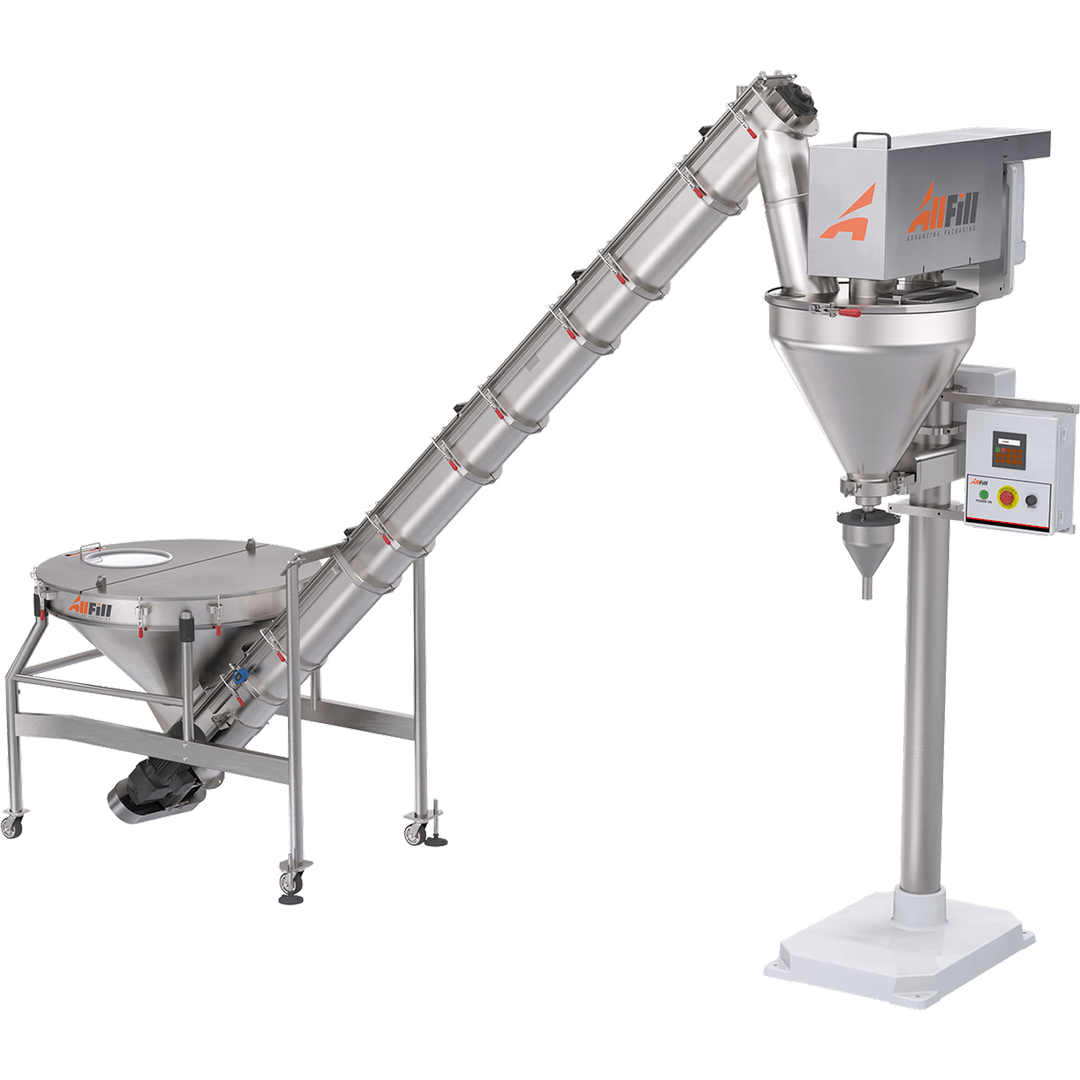

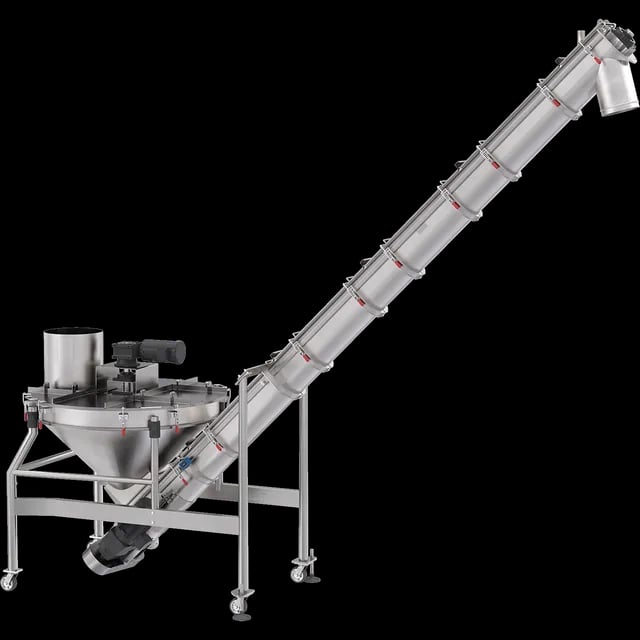

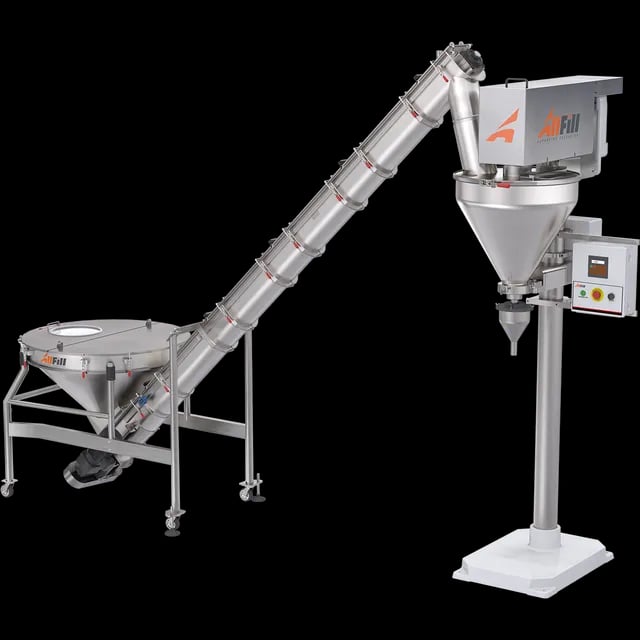

Model ISC

Machine Accessories

All-Fill complements its auger filling machines with a complete line of efficient, reliable delivery systems for free-flowing powders, non-flowing products, and bulk solids. Built for maximum efficiency, safety, and ease of maintenance, our horizontal screw conveyors and inclined screw feeders are available in a variety of configurations, with options and accessories to help solve your most difficult product feeding challenges.

Get a quote

Specifications

  • Construction
    Stainless Steel Frame – Welded and polished type-304 stainless steel product contact parts, mounting frame with adjustable feet and removable hopper cover
  • Sizes
    5.5” dia. X 10’ long ground and polished stainless steel screw with matching, pivoting housing, adjustable discharge height, standard 74"
  • Features
    Includes 1⁄4 hp, 1400 rpm drive and controls, 6 cu. ft. hopper with hinged cover, safety limit switches on hopper covers, delivery speeds up to 180 cu. ft per hour, variable length (10'–12'), 5" inch pitch, 5.5 " diameter, stainless steel conveyor screw. Hopper Agitation, separate motor-controlled agitator blade to regulate product into flights of conveyor screw
  • Machine Dimensions
    113" wide X 92" high
  • Controls
    Forward/Reverse switch, Vibration & Agitation selector switches, Power Indicator, Emergency Stop, Reset switch, Screwfeeder Jog-Run-Off selector
  • Electrical Requirements
    208/230/460v, 3-phase, 60 HZ
  • Construction
    Stainless steel contact parts
  • Options
    Level control available, provides on/off actuation in response to product level in filler hopper, Variable Speed Screw Drive – To vary product supply rate, safety interlocks – limit switches cut power when hopper opened

All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.
