Vibratory Weigh Filling Machines
OUR PREMIER LINE OF VIBRATORY FILLERS
-

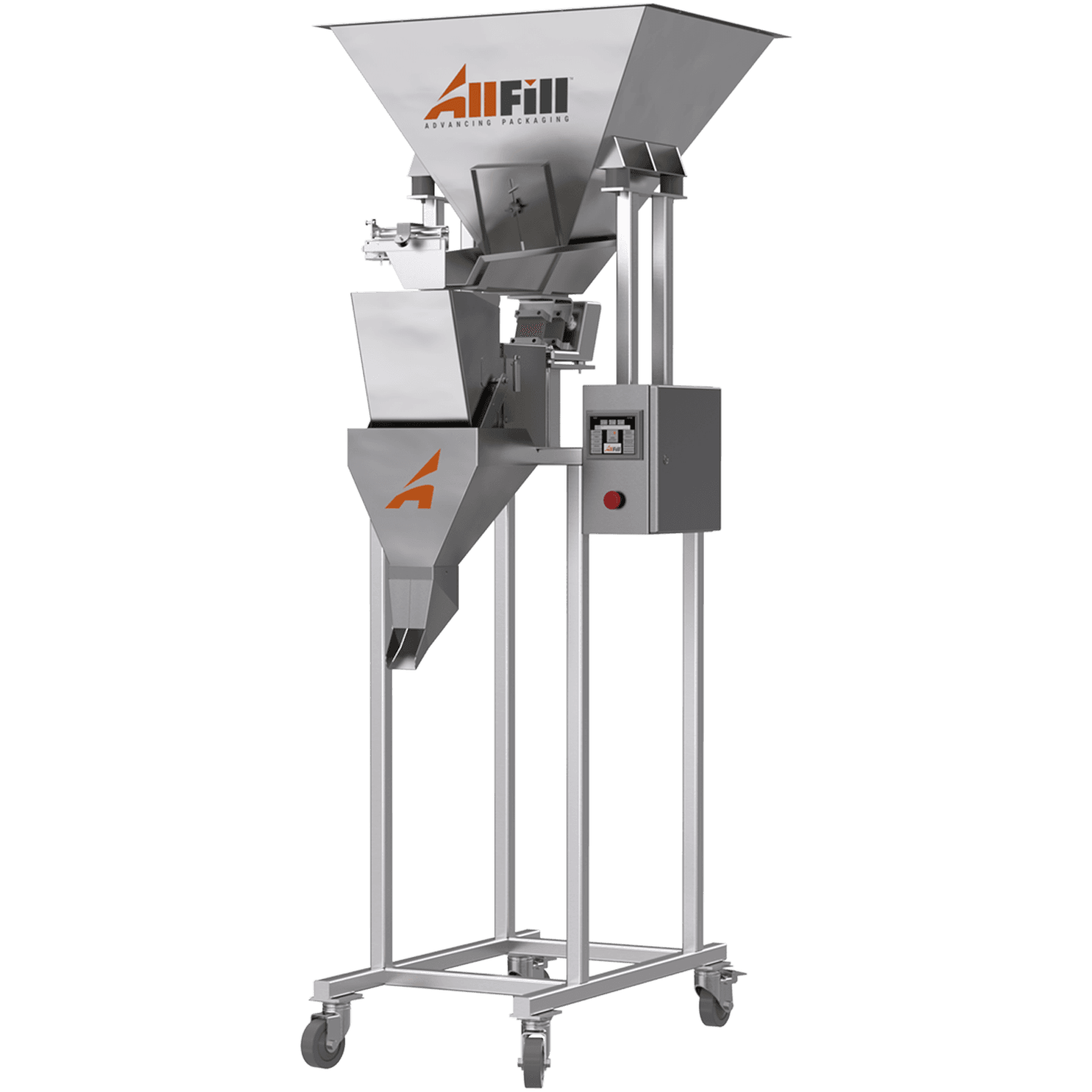

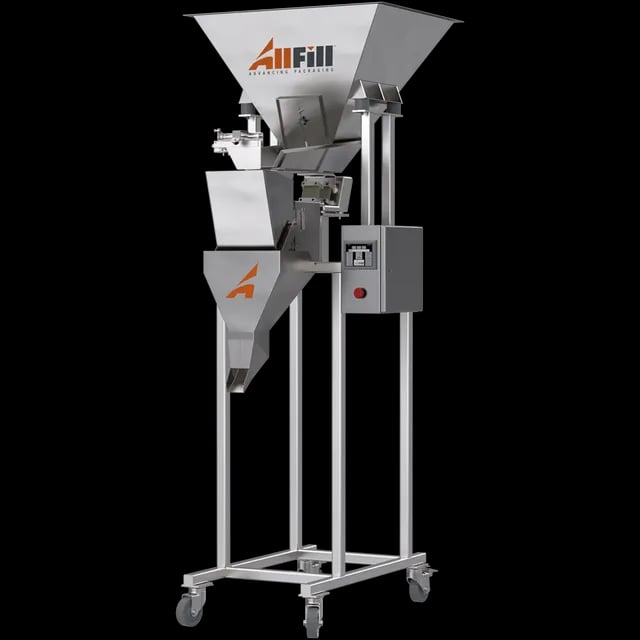

E/SERIES
THE LOGICAL SOLUTION IN TAKING SCOOP AND SCALE COMPANIES TO THE NEXT LEVEL
Read More Read LessThe E/Series of vibratory feeder is the logical solution in taking scoop and scale companies to the next level. Our economical linear net-weigher machine provides precise feeding and weighing of free-flowing and occasionally non free-flowing products such as coffee, beans, granola, and others can be filled at rates of 12-15 containers per minute, depending on model and application. The unit comes standard with a 3.5ft³ hopper, 7 liter weigh bucket and 4 locking casters. This series can precisely feed, weigh, and dispense a variety of products at accuracies of ± 1/2 to 1%.
-

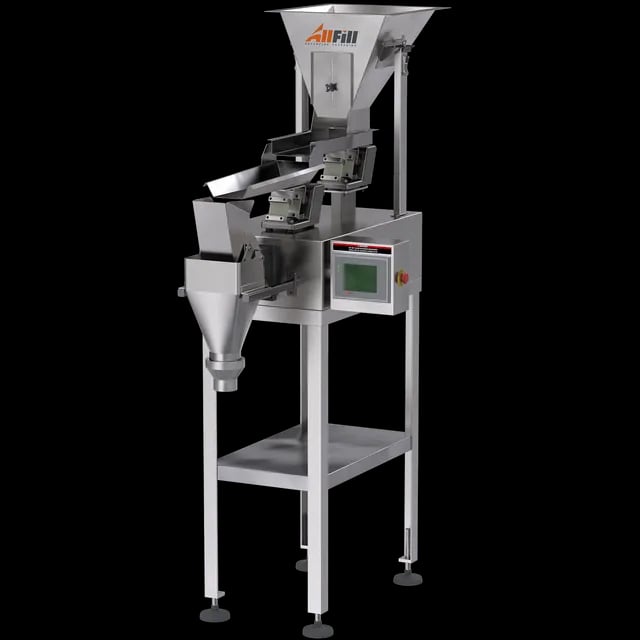

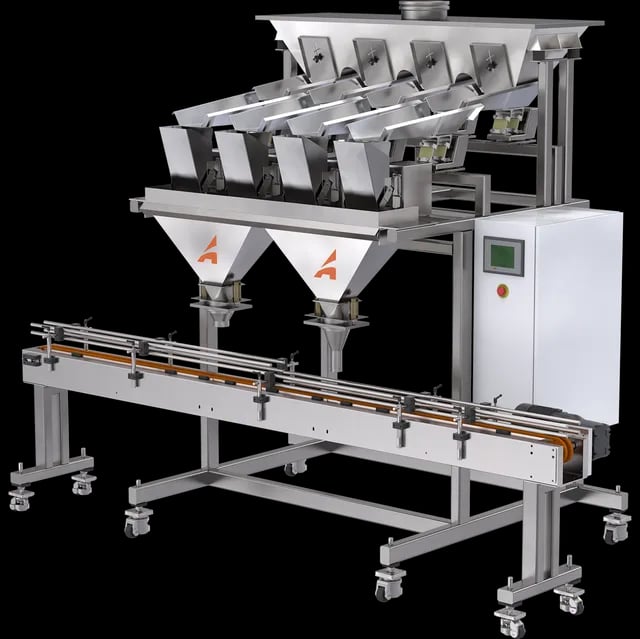

ST/SERIES
SPEEDS RANGE UP TO 60 CONTAINERS PER MINUTE
Read More Read LessThe ST/Series of vibratory fillers is the filling solution for the precise feeding and weighing of free-flowing and occasionally non free-flowing products. Vibratory fillers are able to move and fill products such as snack foods, hardware, and more without causing damage to the product. The ST/Series is available in multiple lanes as non-cascading, cascading, or bulk and dribble. Speeds range up to 60 containers per minute with filling weights of 0.5 oz to 10 lbs. The ST/Series allows products to be precisely conveyed, weighed, and dispensed at accuracies of ± 0.5 to 1%.
-

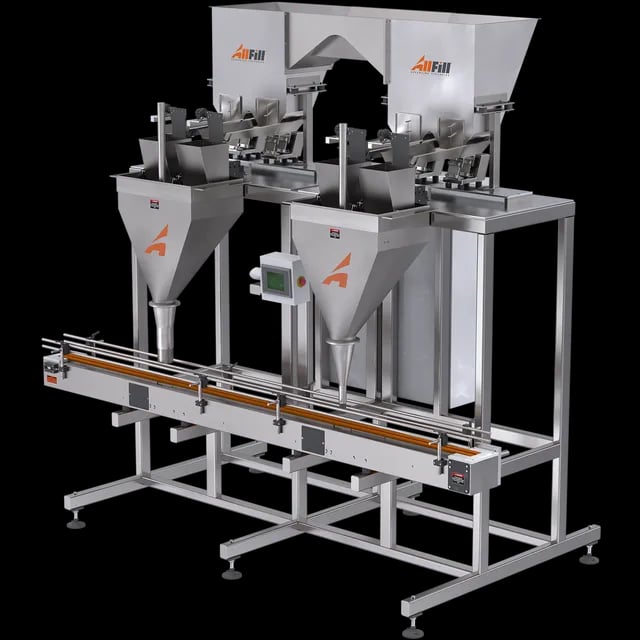

HX/SERIES
FEEDS FREE-FLOWING PRODUCTS INTO CASES OR DRUMS WEIGHING 5 TO 75 POUNDS
Read More Read LessThe HX/Series of vibratory fillers is expertly designed for the feeding of free-flowing products into cases or drums ranging in weights of 5 to 75 lbs. Free-flowing products like nuts, seeds, spices or snack foods, and more can be fed, weighed, and dispensed at accuracies of ± 0.25 to 1%. The pneumatically operated HX/Series is available in 1 to 3 lanes with speeds ranging up to 20 containers per minute. The heavy-duty series consists of large volume weigh buckets, heavy-duty electromagnetic vibrator, bulk product gate, and custom designed 16” wide vibrating trays to transport product making this series a leader in its class.
-

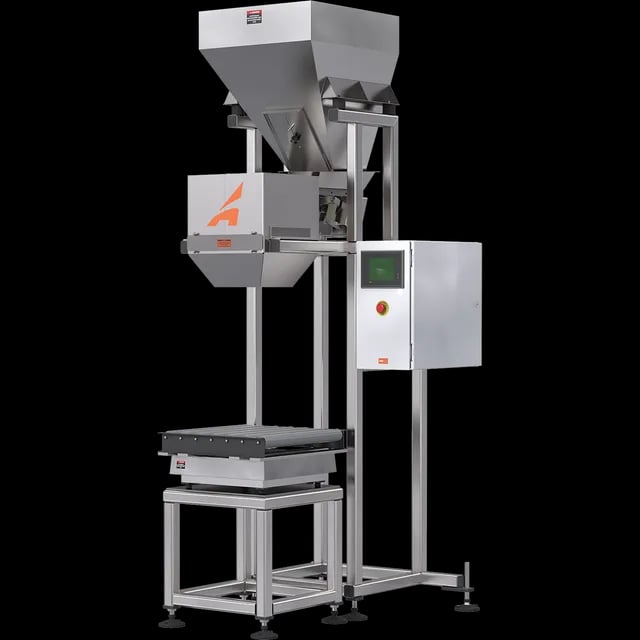

GF/SERIES
CAPABLE OF FILLING WITH ACCURACIES OF ±0.25 TO 1%
Read More Read LessAll-Fill’s gross filling vibratory feeder is designed for the accurate bulk feeding, weighing, and dispensing of 5 to 100 lbs. of free-flowing products such as pretzels, aggregate, and candies while using the bag, box, or rigid container. The GF/Series is capable of filling at speeds of up to 10 containers per minute with accuracies of ±0.25 to 1%.
Our Weigh Filler Packaging Machines
All-Fill's Vibratory Fillers provide you the perfect blend of accuracy, speed, and versatility across a comprehensive line of linear net weigh feeders. Our vibratory fillers are ideal for the controlled dispensing of products that are unsuitable for traditional auger filling. The line consists of single or multiple vibrating trays that carefully regulate the product into a load cell-equipped weigh bucket. When the required weight is attained, the bucket dispenses the product into a container or bag.
Our models are available for single cycle, as well as fully automatic, multiple position systems with conveyors, container handling, and checkweigher feedback for verified accuracy and package weight. With customized elements, including the hopper, feeder pan, and control system, All-Fill vibratory weigh filling machines are designed to handle unique products with accurate weights. From small consumables such as nuts, candy, snack foods, and coffee to industrial-use powders, granules, and chemicals, our series of weigh feeders offer the flexibility to handle many types of products.
What Net Weigh Filling Machines Can Do For Your Production Line
All-Fill’s Net Weigh Filling machines will keep your production rates up to speed and provide an accurate amount of product at the same time. Every All-Fill weigh feeder is designed to handle the unique needs of precise weights – from small consumables such as nuts and coffees to industrial-use powders and chemicals in packaging sizes weighing up to 1 kilogram. Vibratory fillers features include the hopper, a feeder pan and a control system. If you are not sure which vibratory net weigher is right for your filling and weighing needs, we will help you decide.
Benefits of working with All-Fill
-
Machines to fit your budget
Whether you are new to the packaging industry, getting ready to scale your operation or are an established packager, we have the variety of machines to fit your needs. From entry-level economy machines to high-speed lines, we engineer machines that meet your production demands and budget.
-
System Integration
In the world of packaging machinery, just about everything is custom. Our engineers are experts in customizing All-Fill equipment for maximum performance, versatility, and efficiency. We will help design, execute, and implement the perfect workflow or integrate with your existing equipment.
-
Product Experience
Auger fillers are equipped with different tooling to accommodate a variety of product characteristics. If your facility is running more than one product, you can customize a variety of tooling to make sure your equipment and product are running optimally.
-
Product Testing & Support
Every application has precise details that need to be evaluated and tested to find the perfect fit. We recommend sending sample products, bags, labels, and containers for free evaluation. As we continue to manufacture reliable equipment, we assure you we are here every step of the way.
