Volumetric Cup Fillers
OUR PREMIER LINE OF VOLUMETRIC CUP FILLERS
-

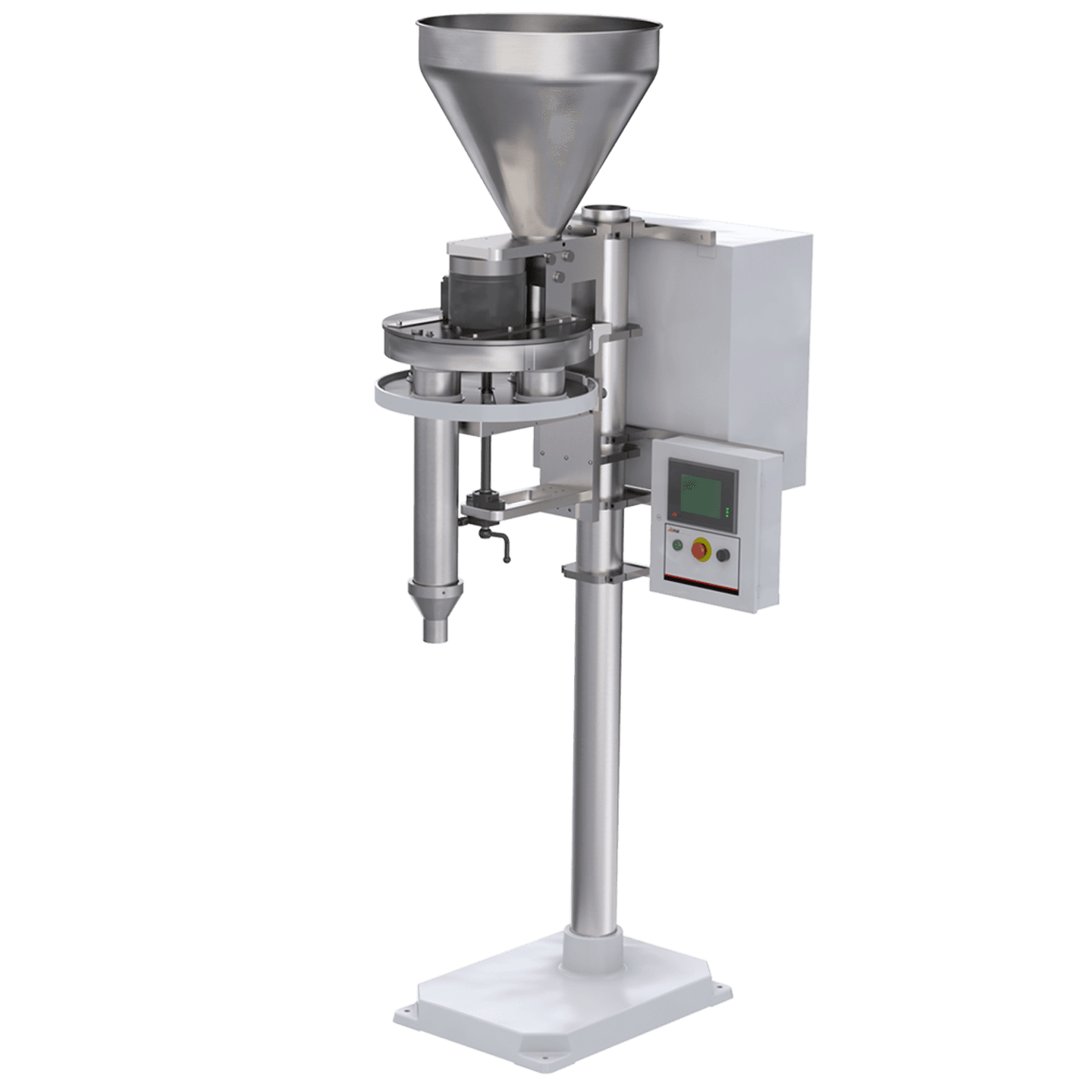

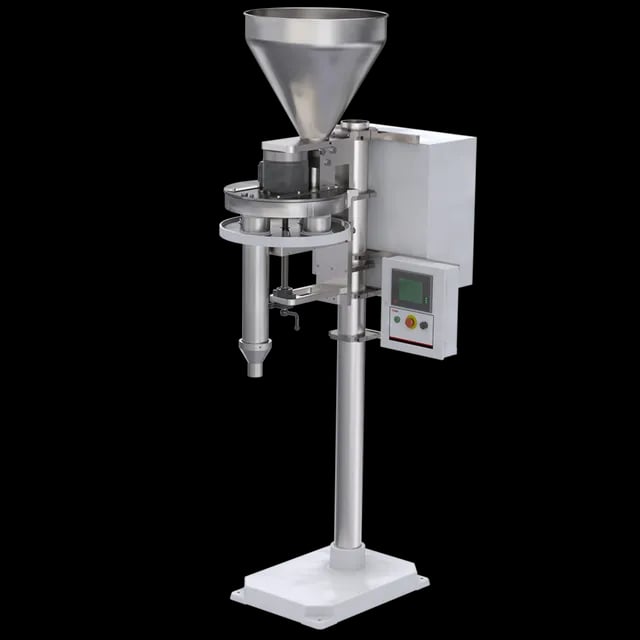

SC/SERIES
FEATURES SPEEDS UP TO 120 PER MINUTE
Read More Read LessThe SC/Series volumetric cup filler can accurately dispense free-flow products such as rice, popcorn, pecans, seeds, candy and more. Fill weights from .25oz to 15lbs can be achieved at speeds up to 120 per minute. Easily removable volume cups and servo position control are standard features on this line.
-

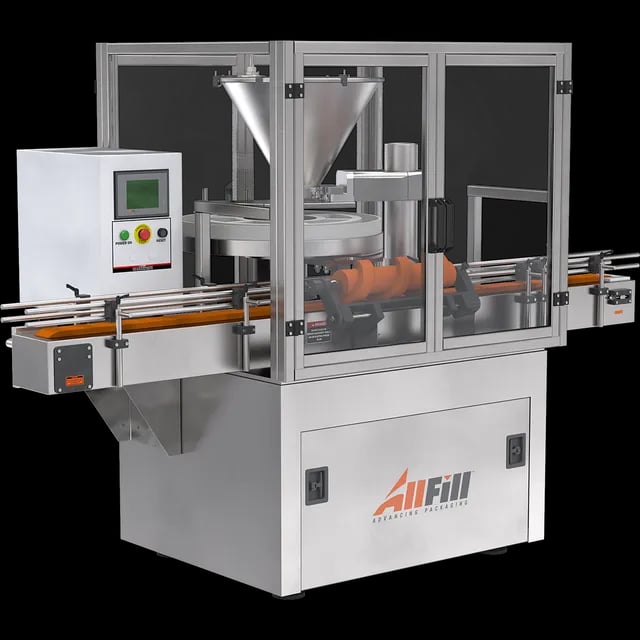

CM/SERIES
VOLUME CUPS CAN EASILY BE CHANGED
Read More Read LessThe CM/Series volumetric cup filler has been expertly designed to accurately dispense free-flow products such as peanuts, snacks, rice, candies and spices. Weights from .25oz to 3lbs can be automatically and continuously filled into containers as they pass under the dispensing plate. Speeds of 30 to 250 per minute can be achieved with the same easily removable volume cups. Volume ranges from 1in³ to 700in³.
-

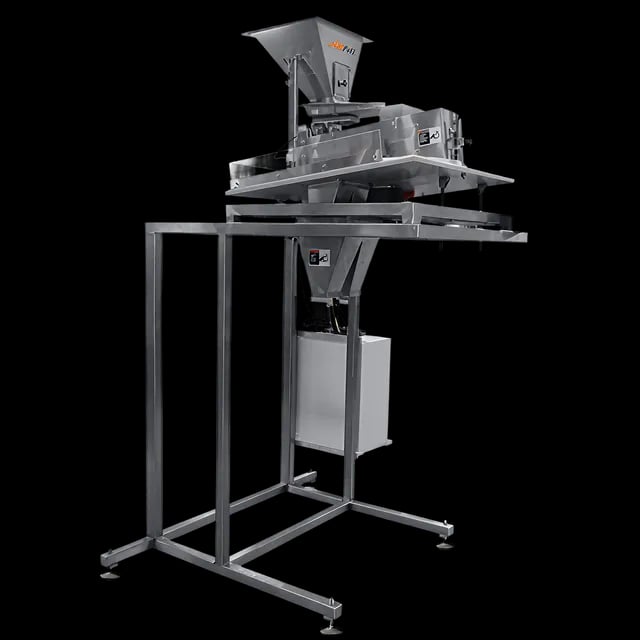

PF/SERIES
INDEXED VIA A SERVO MOTOR FOR THE CORRECT COUNT
Read More Read LessThe PF/Series volumetric cup filler is designed to fill uniformed products such as paint balls, pretzel nuggets, and candy by count. Individual pockets for each item are machined into a delrin plate and indexed via a servo motor for the correct count. Fill counts as low as 1 can be achieved.
-

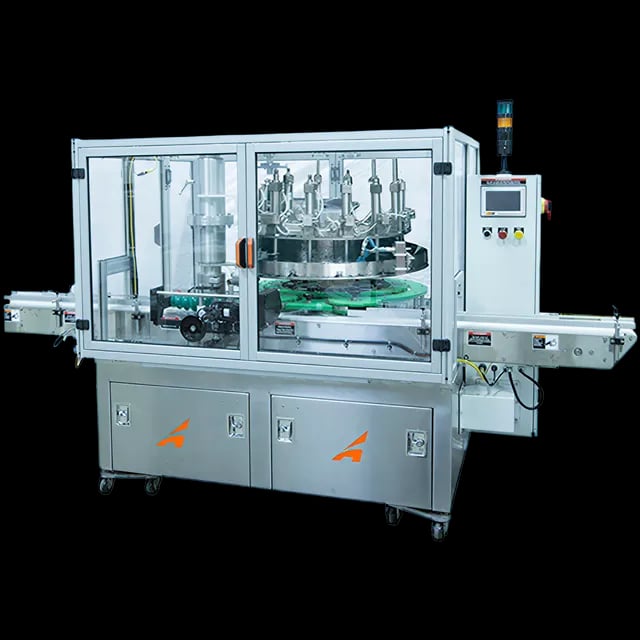

PR/SERIES
PNEUMATIC PLUNGERS PUSH PRODUCT INTO A CAN FOR A CLEAN LEVEL FILL
Read More Read LessThe PR/Series volumetric filler is designed to fill chewing tobacco, or synthetic chewing tobacco into tins at high rates of speed. A volumetric plate is filled with product and gently scraped/pushed into the container. While the container rotates around, pneumatic plungers push the product into the can for a clean level fill.
Our Volumetric Filling Machines
All-Fill Volumetric Cup Filler Systems are used for dispensing a variety of dry free-flowing products such as beans, rice, pet food, candy, seeds, and more without any product degradation. Our cup filling machine has a variety of volumetric cup sizes that can be changed out within minutes to accommodate a variety of products and fill sizes. A set of interchangeable telescoping cups can be adjusted semi-automatically via a hand crank or automatically via a motor to fine-tune the fill weights. All-Fill’s volumetric cup filling machines are designed to fill both low and high speeds; ranging from 30-120 packages per minute. Our rotary cup filling machines have options to enhance production for your specific needs such as a conveyor, timing screw, vertical form fill seal (VFFS) mount.
What Cup Filling Machines Can Do For Businesses
All-Fill Volumetric Cup Filling Machines are a perfect option for businesses that want to enhance their production. Our volumetric cup filler systems are used for dispensing a variety of dry free-flowing products without any product degradation. All-Fill’s rotary cup filling machines provide complete accuracy, high and low speeds, and are easy to use with their removable volume cup feature.
Benefits of working with All-Fill
-
Machines to fit your budget
Whether you are new to the packaging industry, getting ready to scale your operation or are an established packager, we have the variety of machines to fit your needs. From entry-level economy machines to high-speed lines, we engineer machines that meet your production demands and budget.
-
System Integration
In the world of packaging machinery, just about everything is custom. Our engineers are experts in customizing All-Fill equipment for maximum performance, versatility, and efficiency. We will help design, execute, and implement the perfect workflow or integrate with your existing equipment.
-
Product Experience
Auger fillers are equipped with different tooling to accommodate a variety of product characteristics. If your facility is running more than one product, you can customize a variety of tooling to make sure your equipment and product are running optimally.
-
Product Testing & Support
Every application has precise details that need to be evaluated and tested to find the perfect fit. We recommend sending sample products, bags, labels, and containers for free evaluation. As we continue to manufacture reliable equipment, we assure you we are here every step of the way.
