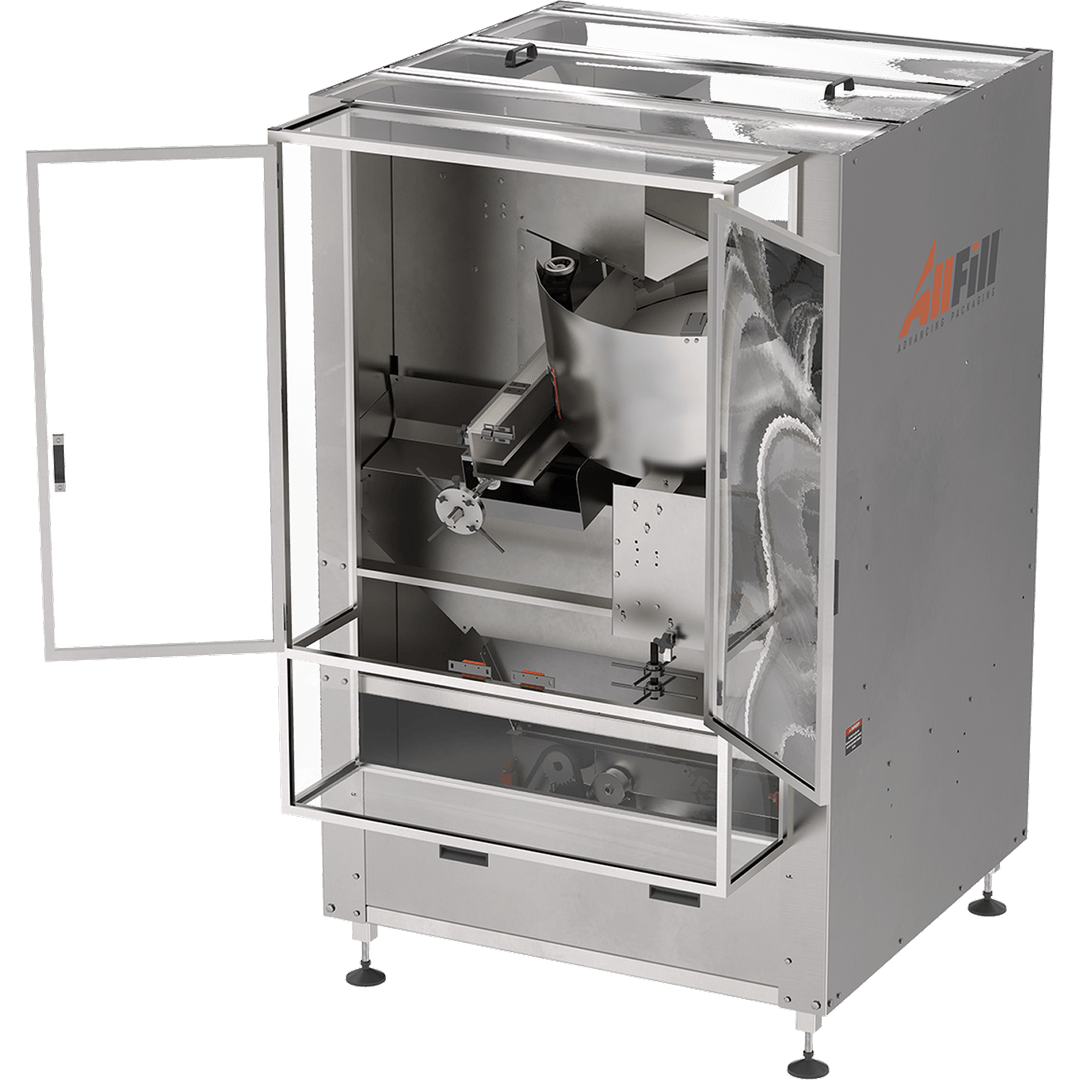

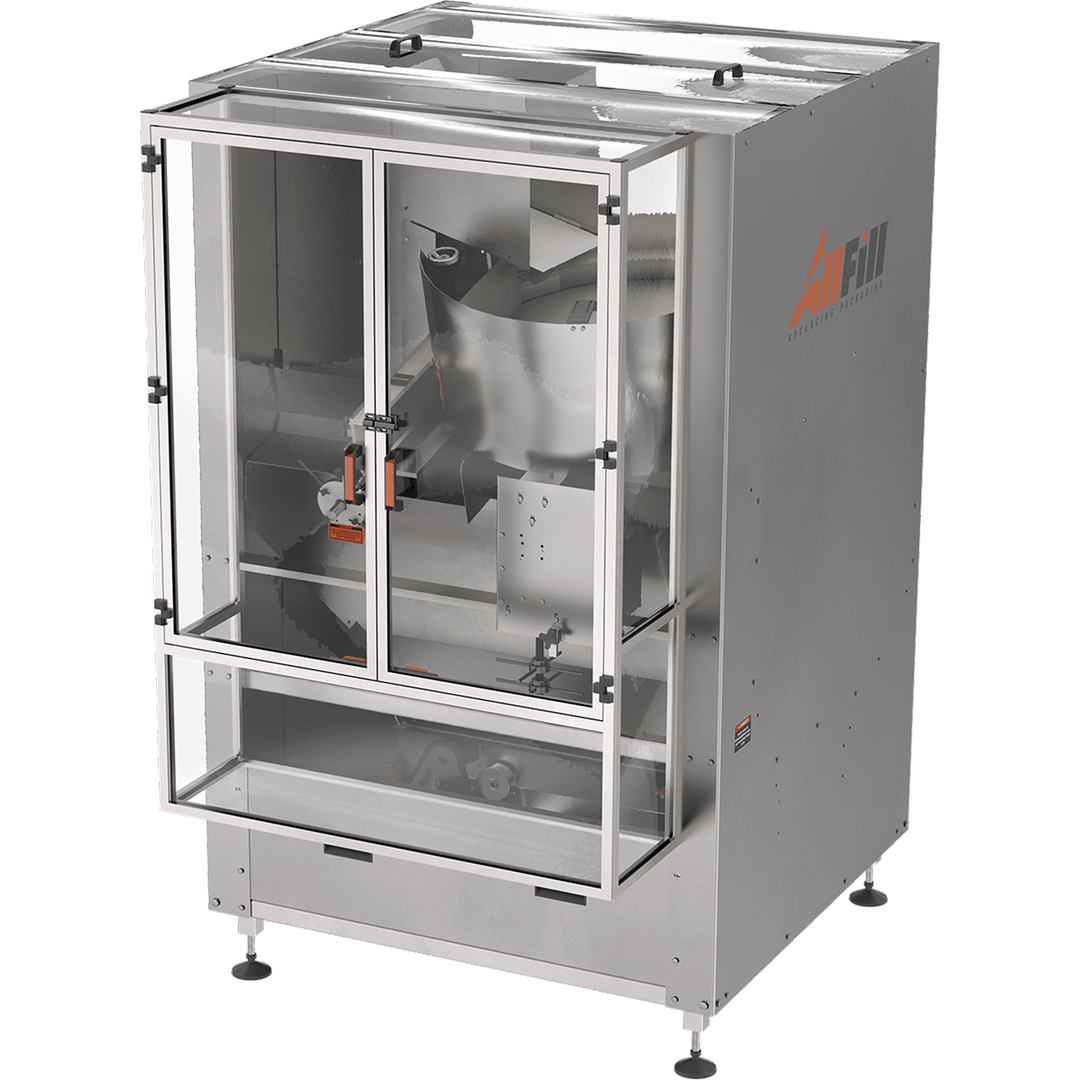

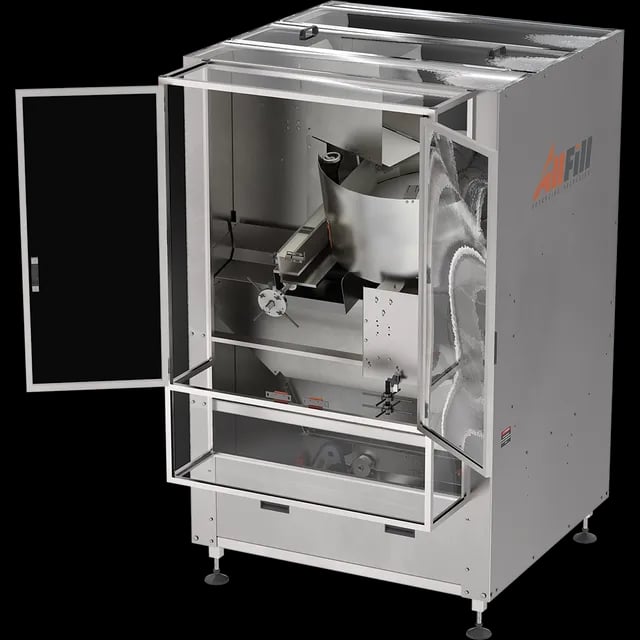

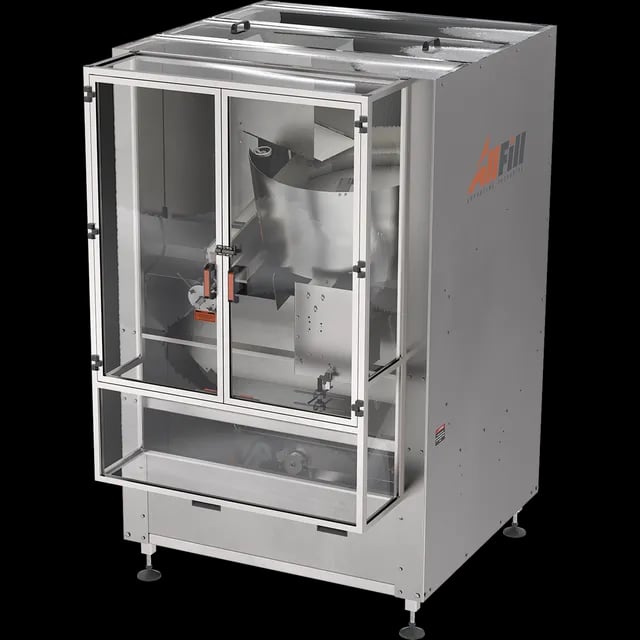

Model P Unscrambler
The Model P, formerly known as the Palace Packaging Compact Model, is ideal for operations with limited space or integrating with existing packaging lines. It's versatile, compact design feeds many shapes and sizes of bottles. It has the smallest footprint of any unscrambling machine with an internal bulk hopper. The Model P uses a starwheel for consistent and accurate container orienting. Containers are discharged onto a conveyor or directly into starwheels, pocket wheels or pucks. A low profile system features quick, easy and accurate changeovers with fewer changeover adjustments then traditional 'belt & hook' unscrambler designs. Auto-reversing disc pre-sorter and multi-purpose sensors make for a trouble free and technician free operation. Bottle contact parts are constructed of FDA approved materials, primarily stainless steel. The Model P is safe to operate, simple to maintain and easy to understand and install.
Specifications
-
Size RequirementsSuitable for containers up to 5.5" diameter or width wide and 9" tall
-
Production RatesSpeeds up to 120 per minute
-
Container Size ChangeoverTool-less changeover, reference scales standard
-
Machine DimensionsAs small as 43" x 40" footprint with bulk hopper
-
ControlsPLC and color touchscreen, discharge backlog sensor
-
Electrical Requirements120 volt, Single Phase
-
Pneumatic Requirements80-90 PSI
-
ConstructionStainless steel with acrylic access doors
-
OptionsIonized air rinse. Air rinse vacuum collection. Left or right hand bottle discharge direction. Class 100-autoclavable contact parts. Casters for portability. Stack light.
All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.
Common Applications
-
Squeeze Bottles
-
Toilet Cleaning Bottles
-
Hand Pump Containers
-
Specimen Containers
-
F-Style Bottles
-
Shampoo Bottles
-
Round Bottles
-
Dish Soap Bottles
-
Spice Containers
-
Small Spray Bottles
-
Spray Bottles
-
Square Bottles
-
Oval Bottles
-
Lip & Eye Liner Bottles
-
Drink Containers
-
Detergent Containers
-
Contoured Bottles
-
Pill Bottles
-
Moisturizer Containers
-
Tall Containers
-
Nutraceutical Containers
-
Handled Containers
-
Eye Drop Containers
-
Deodorant Sticks
-
Cosmetic Jars
-
Liquid Drop Containers
Videos
-

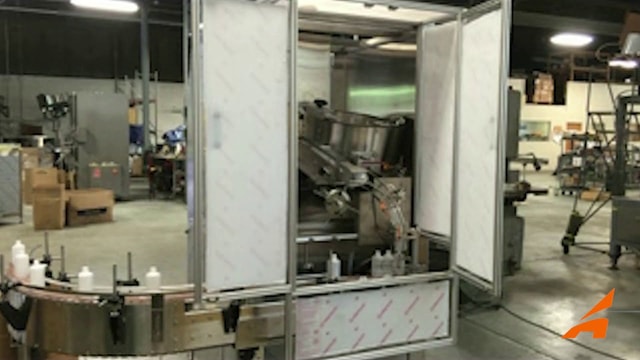

Unscrambler - Model P
Type: Unscrambler
Model: P
Application: 250ML Bottles -
Highlight: Bottle Unscramblers Overview
Type: Unscramblers Overview
Feature: Learn more about out Bottle Unscramblers and how they can be integrated into your production line. -
Integrated System - Unscrambler, Auger Filler, Checkweigher, Capper & Labeler
Type: Turnkey Packaging Line — Pack Expo Las Vegas (2023)
Model: Model P Unscrambler - SHA-600-CW Auger Filler - CI Capper - Wrap/Series Labeler
Application: Spice
Industry: Spices & Seasonings
Feature: All-Fill Integration
