Model CF

Fillers

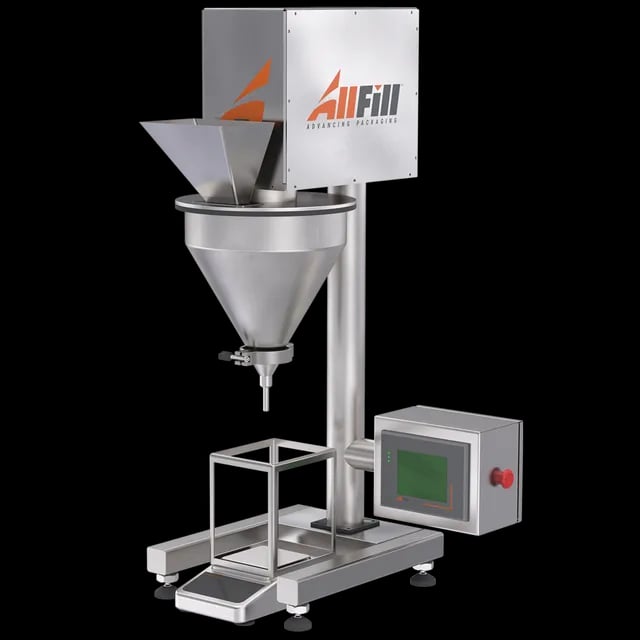

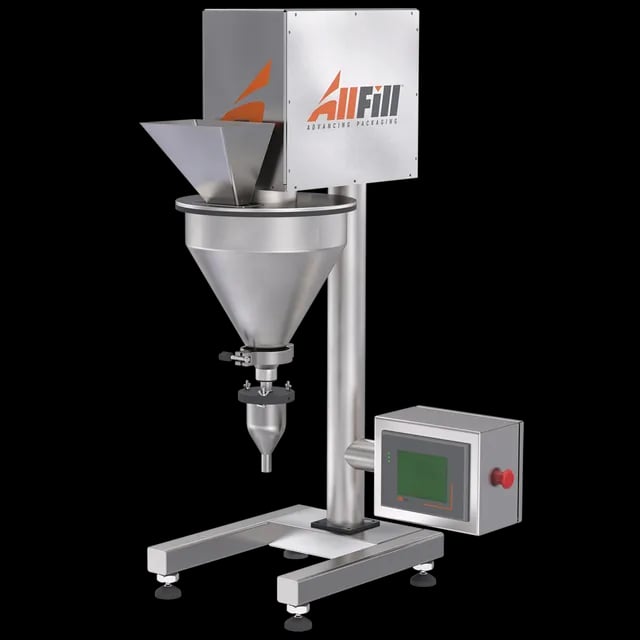

All-Fill’s Model CF semi-automatic auger filler is a bench top unit designed for dosing of all types of powders including pharmaceuticals and chemicals for a weight range of milligrams to ounces. All product contact parts are made of stainless steel and are designed for easy changeover and clean up. This small auger filler is driven by a servo motor and controlled by an Allen Bradley PLC with a touch-screen operator interface. The CF-SV-600 auger filler can utilize a precision digital balance for the “fill-by-weight” operating principle to maintain a typical accuracy of +/- 1 to 5% depending on product characteristics. The CFS-SV-600 auger filler is identical to the CF-SV-600 but comes standard with an added scale.

Get a quote

Specifications

Construction

Stainless steel product contact parts, stainless steel construction
Production Rates

Speeds depending on product and operator
Controls

Embedded controller, 7.00" color touch screen HMI, foot pedal initiation
Control Features

Individual control of all settings. Alphanumeric product naming. Tri-clover connections. Containers per minute readout. Automatic tare if equipped with scale. Users / Maintenance / Supervisor Login optional. Statistical analysis of a shift run.
Hopper Capacity

A stainless steel 3 gallon hopper provides ample capacity and sufficient head pressure for repeatable. Accurate filling. Hopper extensions and covers are also available.
Storage

100 product memory
Electrical Requirements

115V 50-60 HZ. Other ratings available upon request.
Machine Dimensions

Base Model 36" x 48"tool-less
Changeovers

Mostly tool-less
Options

Statistical package (USB), 316 stainless steel contact and quick removal parts available, bag clamp, product level sensor, scales

All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.

Common Applications
