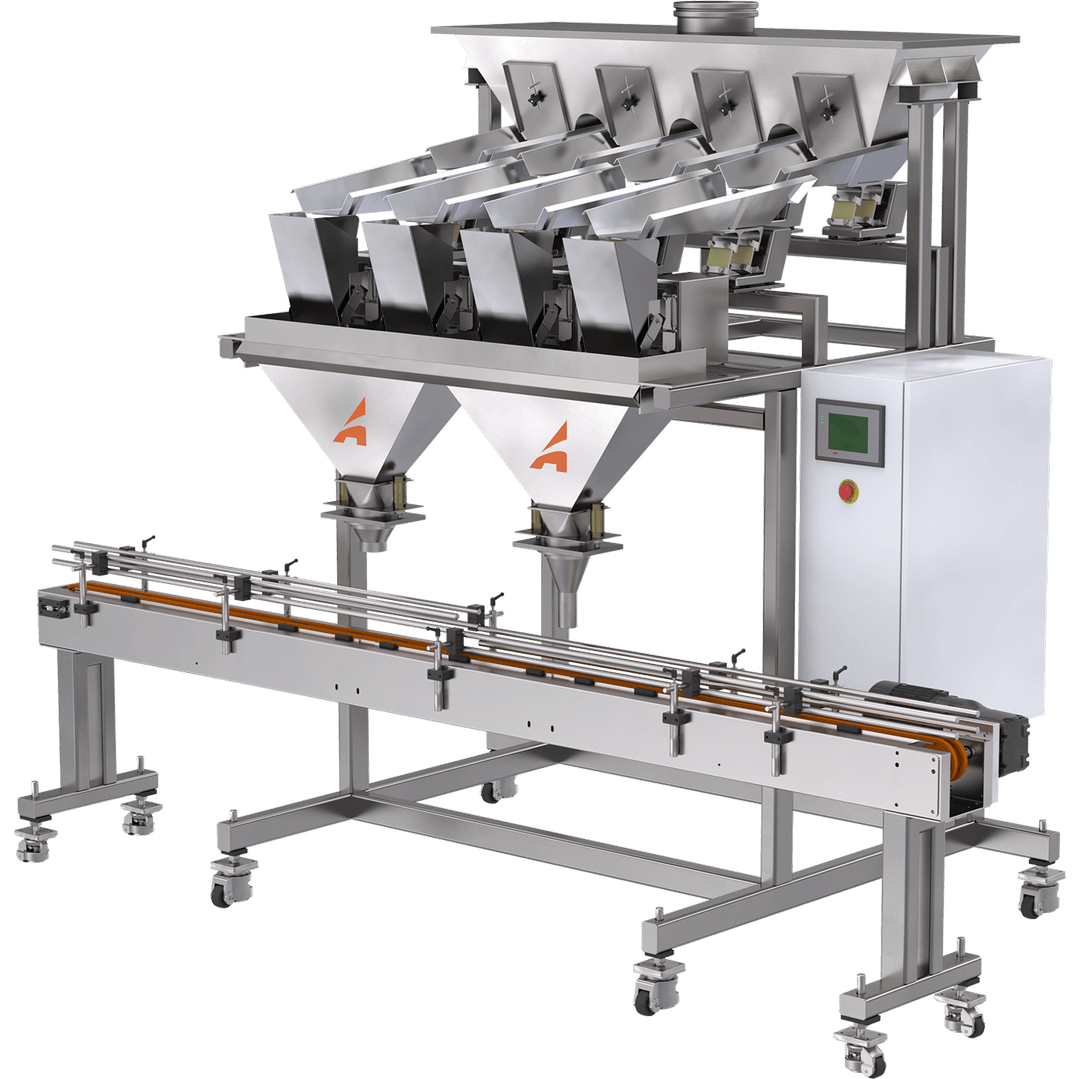

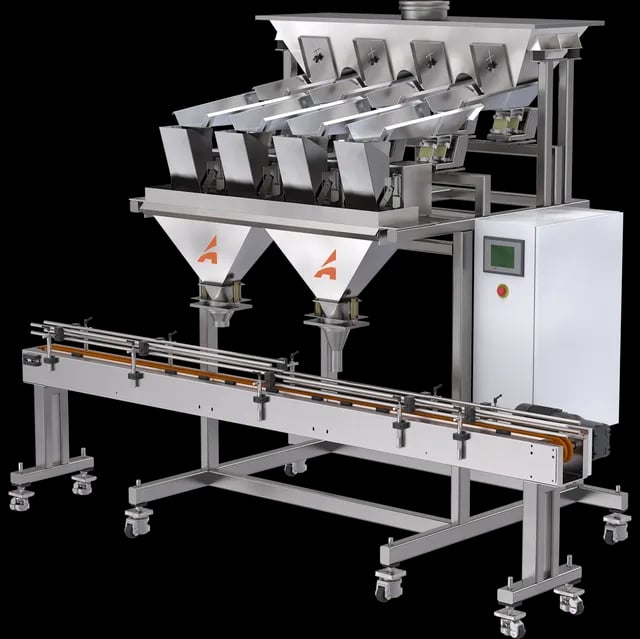

The HX/Series is expertly designed for the feeding of free-flowing products into cases or drums ranging in weights of 5 to 75 lbs. Free-flowing products like nuts, seeds, spices or snack foods, and more can be fed, weighed, and dispensed at accuracies of ± 0.25 to 1%. The pneumatically operated HX/Series is available in 1 to 3 lanes with speeds ranging up to 20 containers per minute. The heavy-duty series consists of large volume weigh buckets, heavy-duty electromagnetic vibrator, bulk product gate, and custom designed 16” wide vibrating trays to transport product making this a series a leader in its class.

Get a quote

Specifications

  • Construction
    All stainless steel, available in 1-4 lane configurations for semi-automatic of automatic models
  • Production Rates
    Speeds ranging up to 15 CPM per lane, depending on fill size.
  • Controls
    Embedded controller, 10.00" color touch screen HMI, foot pedal initiation
  • Control Features
    Individual control of all settings. Alphanumeric product naming. Bulk and dribble speed control. Containers per minute readout. Individual control of all settings. Automatic tare of weigh bucket. Users / Maintenance / Supervisor Login. Statistical analysis of a shift run. Weigh units of measure. Weight or count mode.
  • Hopper Capacity
    Supply hopper capacity of 5 cu. ft., other options available: hopper extensions and covers
  • Weigh Bucket Sizes
    3 in3 to 1 ft3
  • Machine Dimensions
    Feed pan widths from .5" to 12" wide
  • Storage
    100 product memory
  • Electrical Requirements
    120V/1ph/60HZ standard (other voltages available)
  • Pneumatic Requirements
    10 SCFM @ 60 PSI
  • Changeovers
    Fix mounted - tools required
  • Options
    Conveyor. Indexing and automation packages. Partitioned hopper for ingredient mixing. Nylon coating and dimpled contact surfaces. Statistical package (USB). Various washdown designs. Variety of fill accessories. Nozzles or chutes. Electric dribble feed gate. Heavy-duty vibrator. Additional lanes for increased production. Product level control to signal infeed device. Hopper cover. Integration with OEM. 316 stainless steel contact and quick removal parts available.

All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.

Common Applications

  • Almonds

  • Cheese Products

  • Dried Fruit

  • Tobacco Products

  • Wax Beads

  • Cereal Products

  • Raisins

  • Hop Pellets

  • Pecans

  • Whole & Ground Coffee

  • Cloves

  • Olives

  • Granules

  • Dehydrated Meats & Jerky

  • Fish Food

  • Tea Leaves

  • Peas & Legumes

  • Pet Food

  • Shredded Cheese

  • Wood Chips

  • Chocolate Truffles

  • Cherries

  • Potato Chips

  • Metal Hardware

  • Dental Picks

  • Coated Candy

  • Granola

  • Cookies

  • Glitter Products

  • Fertilizer Granules

  • Plastic Hardware

  • Cannabis

  • Fasteners

  • Wood & Feed Pellets

  • Jimmies & Sprinkles

  • Plant Foods

  • Chocolate Chips

  • Wrapped Candies

  • Animal Treats

  • Tortilla Chips

  • Coated Gummies

  • Soft Coated Candies

  • Glass Beads

  • Pretzels

  • Popcorn

  • Pasta Products

  • Beans

  • Whole Peppercorns

  • Chia Seeds

  • Grass & Fennel Seeds

  • Fresh & Frozen Fruit

  • Chickpeas

  • Minced & Whole Garlic
