E/Series
Fillers

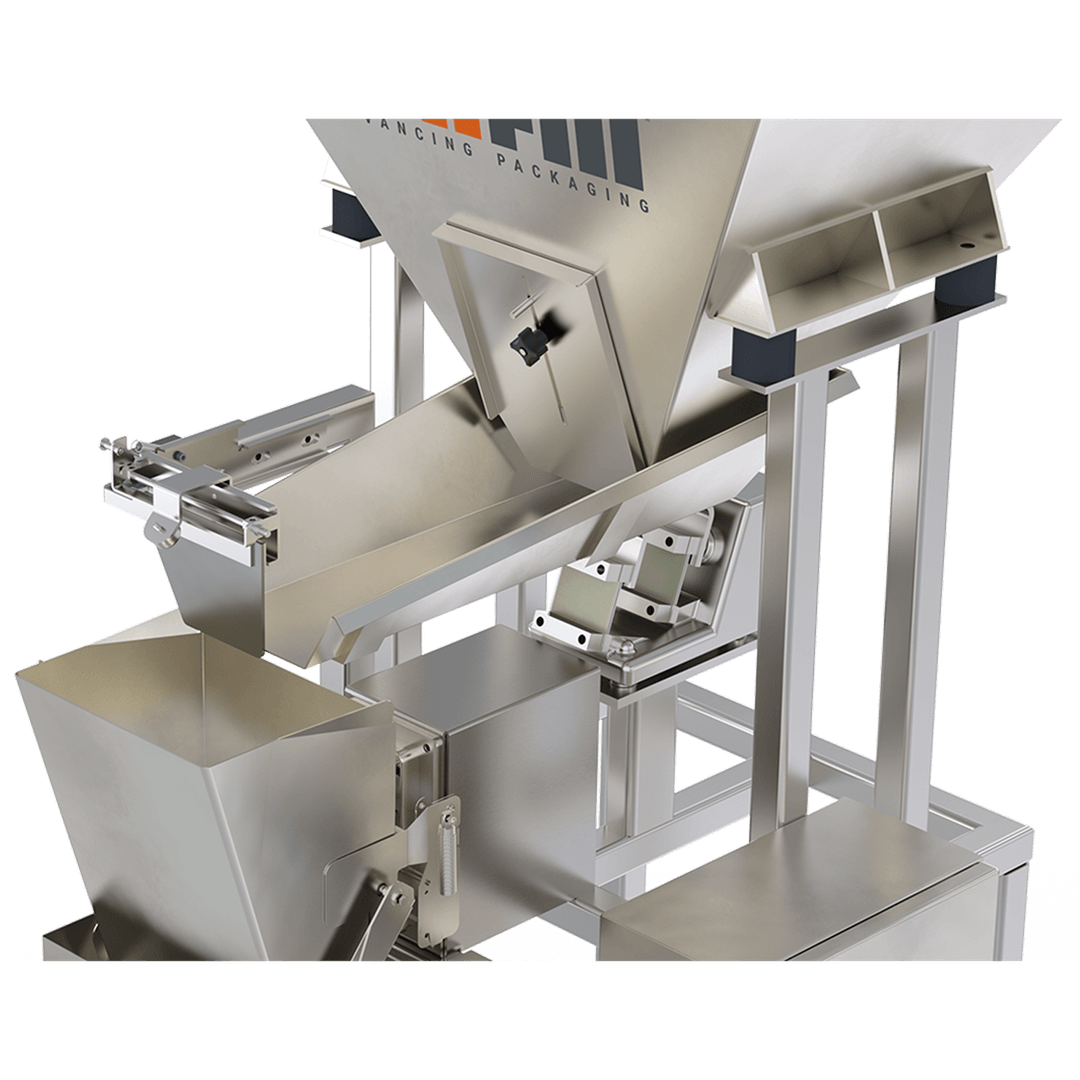

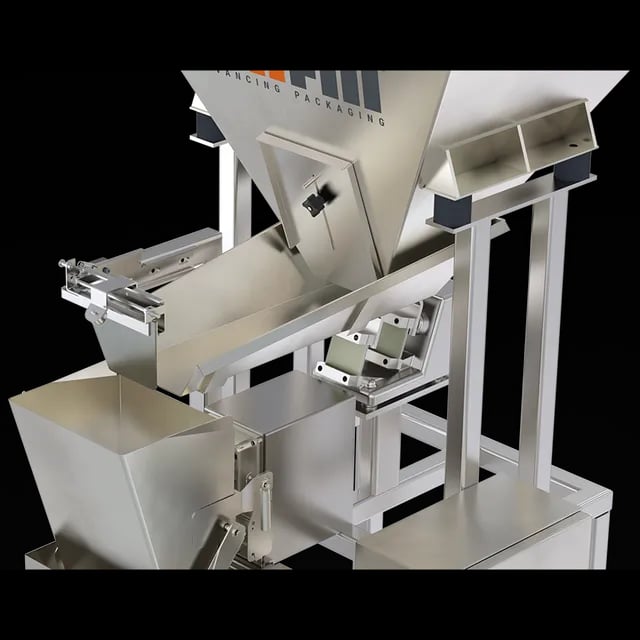

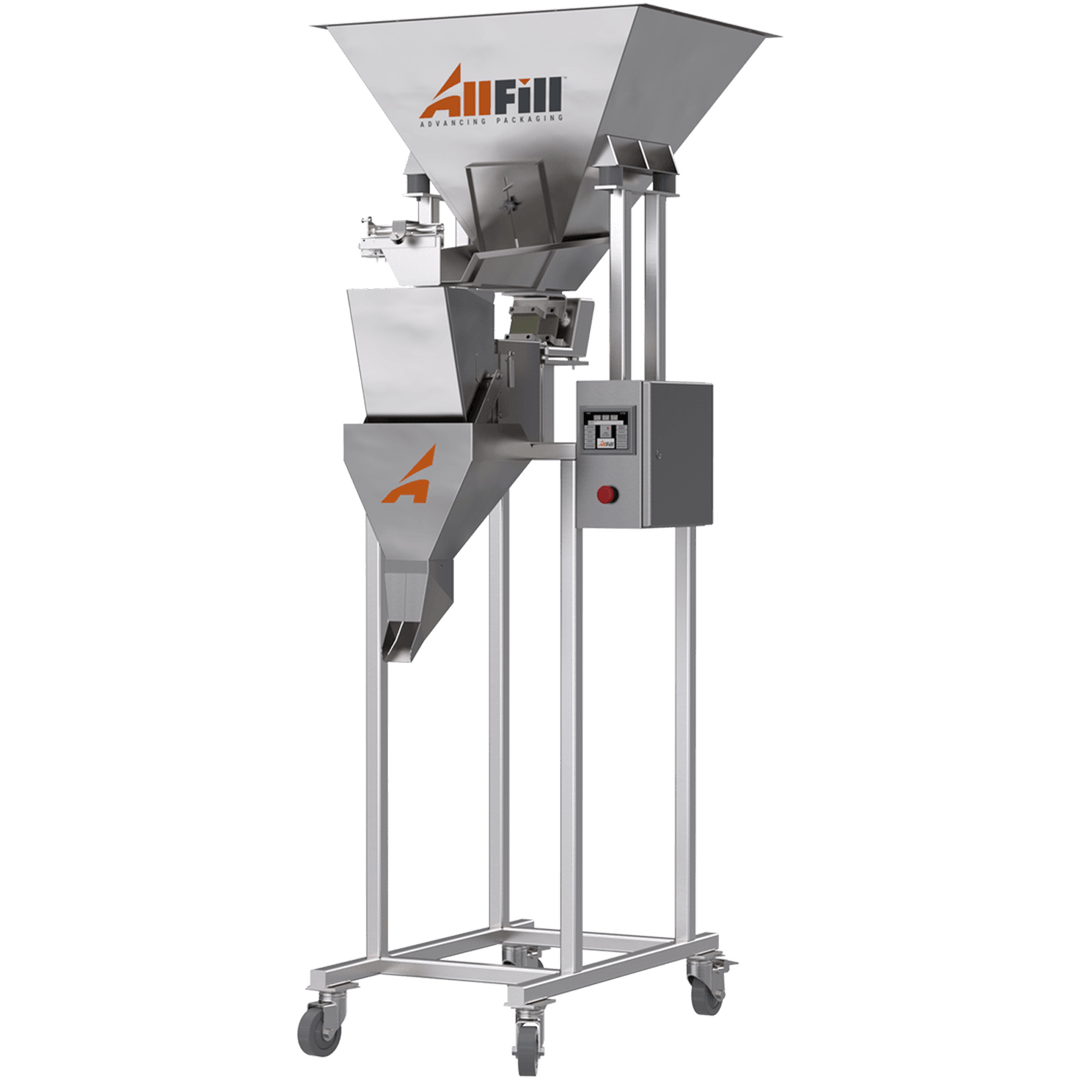

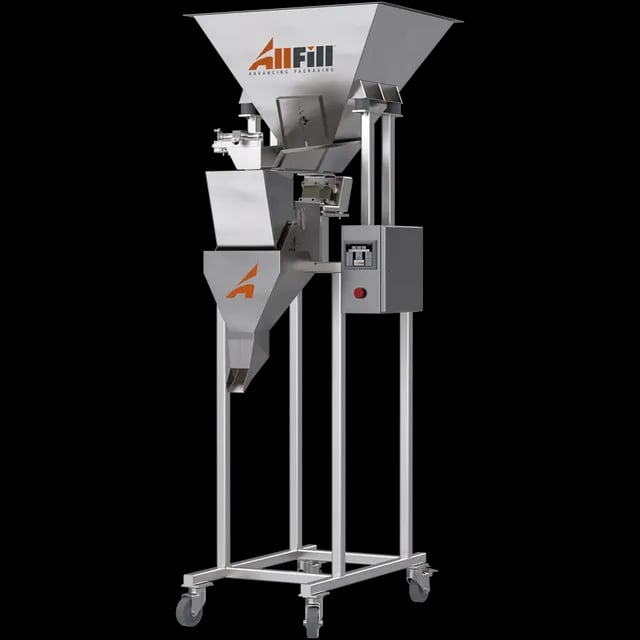

The E/Series of vibratory feeder is the logical solution in taking scoop and scale companies to the next level. Our economical linear net-weigher provides precise feeding and weighing of free-flowing and occasionally non free-flowing products such as coffee, beans, granola, and others can be filled at rates of 12-15 containers per minute, depending on model and application. The unit comes standard with a 3.5ft³ hopper, 7 liter weigh bucket and 4 locking casters. This series can precisely feed, weigh, and dispense a variety of products at accuracies of ± 1/2 to 1%.
Specifications
-
ConstructionAll stainless steel with 4 locking castors
-
ControlsEmbedded controller, 5.00" color touch screen HMI, foot pedal initiation
-
Control FeaturesIndividual control of all settings. Alphanumeric product naming. Self-adjusting bulk and dribble speed control. Containers per minute readout. Automatic tare. Batch count readout.
-
Hopper CapacitySupply hopper capacity of 6 cu. ft., or 3.5 cubic feet standard, other options available: hopper extensions and covers
-
Weigh Bucket Sizes3 liter standard, 7 Liter or 11 Liter options available
-
Machine DimensionsE/Series 100: 30" wide x 36" deep x 86" high, E/Series 200: 43" wide x 36" deep x 86" high
-
Storage50 product memory
-
Electrical Requirements120V/1ph/60HZ standard (other voltages available)
-
Pneumatic RequirementsNone are required.
-
OptionsVariety of fill accessories. Nozzles or chutes. Electric dribble feed gate. Heavy duty vibrator. Additional lanes for increased production. Product level control to signal infeed device. Hopper cover. Integration with OEM.
All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.
Common Applications
-
Almonds
-
Cheese Products
-
Dried Fruit
-
Tobacco Products
-
Wax Beads
-
Cereal Products
-
Raisins
-
Hop Pellets
-
Pecans
-
Whole & Ground Coffee
-
Cloves
-
Olives
-
Granules
-
Dehydrated Meats & Jerky
-
Fish Food
-
Tea Leaves
-
Peas & Legumes
-
Pet Food
-
Shredded Cheese
-
Wood Chips
-
Chocolate Truffles
-
Cherries
-
Potato Chips
-
Metal Hardware
-
Dental Picks
-
Coated Candy
-
Granola
-
Cookies
-
Glitter Products
-
Fertilizer Granules
-
Plastic Hardware
-
Cannabis
-
Fasteners
-
Wood & Feed Pellets
-
Jimmies & Sprinkles
-
Plant Foods
-
Chocolate Chips
-
Wrapped Candies
-
Animal Treats
-
Tortilla Chips
-
Coated Gummies
-
Soft Coated Candies
-
Glass Beads
-
Pretzels
-
Popcorn
-
Pasta Products
-
Beans
-
Whole Peppercorns
-
Chia Seeds
-
Grass & Fennel Seeds
-
Fresh & Frozen Fruit
-
Chickpeas
-
Minced & Whole Garlic
Videos
-

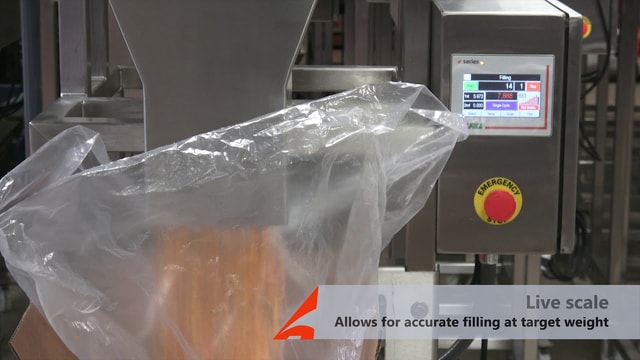

Vibratory Filler - E/Series
Type: Vibratory Filler
Model: VF101/E/Series
Application: Sprinkles
Industry: Candy & Confections
Feature: Adjustable Live Scale -

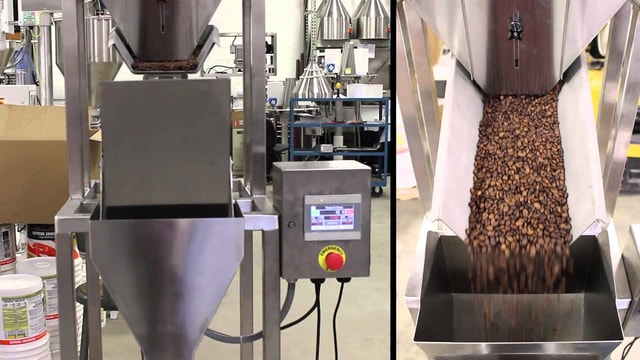

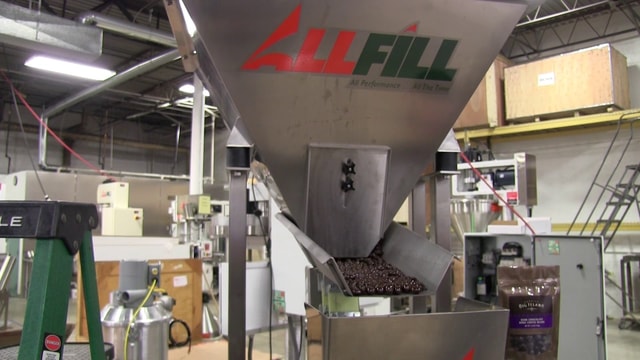

Vibratory Filler - E/Series
Type: Vibratory Filler
Model: VF100/E/Series
Application: Whole Bean Coffee
Industry: Coffee

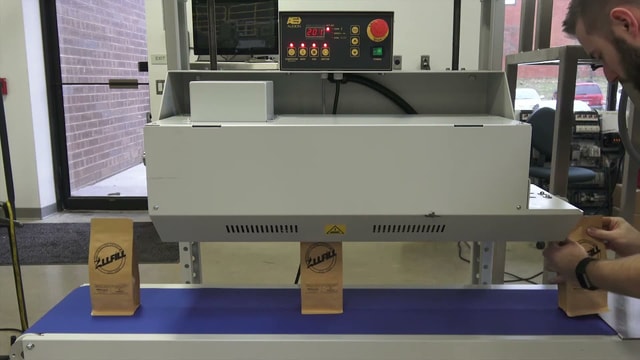

Feature: Pneu-Con & Sealer -

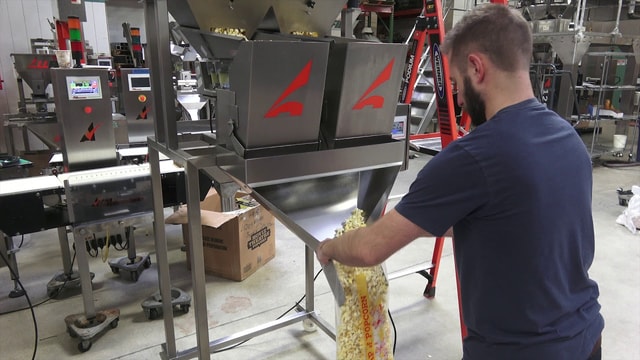

Vibratory Filler - E/Series
Type: Vibratory Filler
Model: VF100E/Series
Application: Popcorn
Industry: Snack Foods -

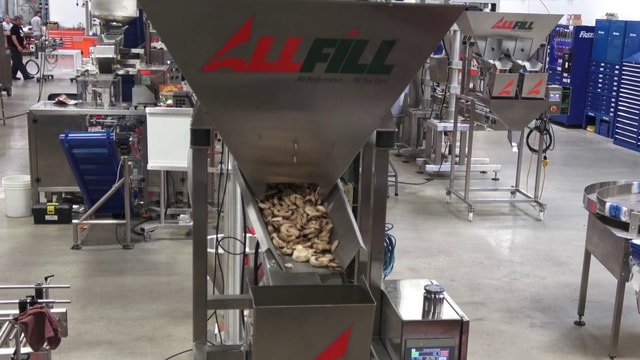

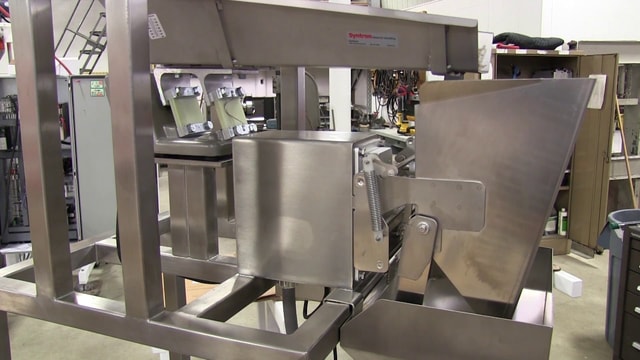

Vibratory Filler - E/Series
Type: Vibratory Filler
Model: VF100/E/Series
Application: Macadamia Nuts
Industry: Dried Fruit & Nuts -

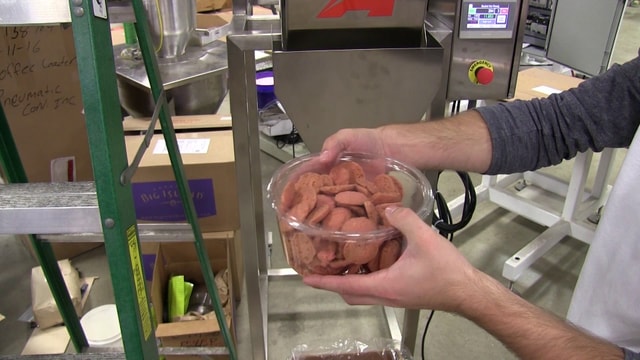

Vibratory Filler - E/Series
Type: Vibratory Filler
Model: VF100/E/Series
Application: Cookies
Industry: Snack Foods -

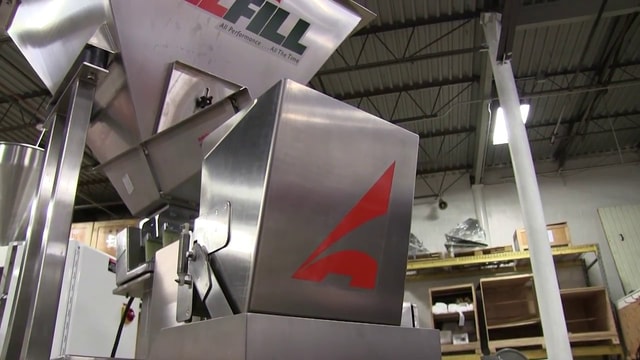

Vibratory Filler - E/Series
Type: Vibratory Filler
Model: VF100/E/Series
Application: Wrapped Candies
Industry: Candy & Confections
