GF/Series

Fillers

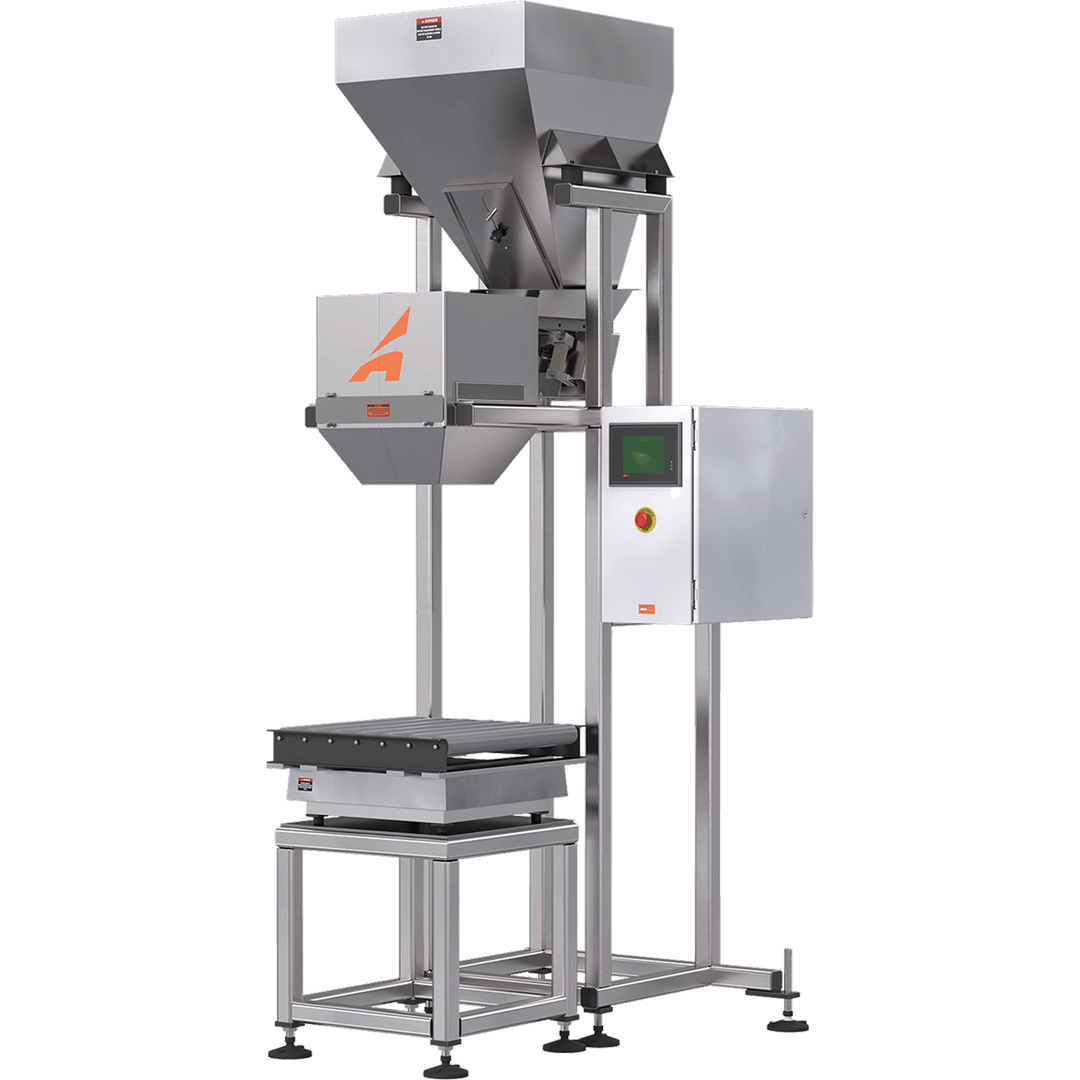

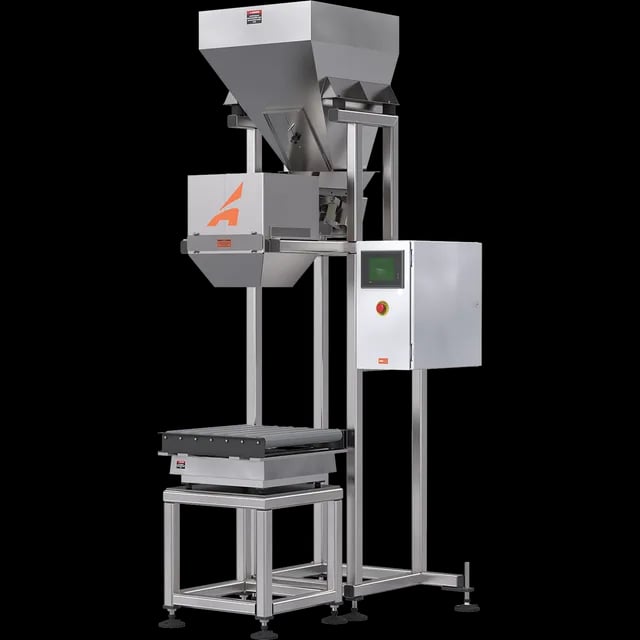

All-Fill’s gross filling vibratory feeder is designed for the accurate bulk feeding, weighing, and dispensing of 5 to 100 lbs. of free-flowing products such as pretzels, aggregate, and candies while using the bag, box, or rigid container. The GF/Series is capable of filling at speeds of up to 10 containers per minute with accuracies of ±0.25 to 1%.

Get a quote

Specifications

Construction

All stainless steel, available in 1-4 lane configurations for semi-automatic or automatic models, painted mild steel available
Production Rates

Speeds ranging up to 10 CPM per lane, depending on fill size.
Controls

Embedded controller, 10.00" color touch screen HMI, foot pedal initiation
Control Features

Individual control of all settings. Alphanumeric product naming. Bulk and dribble speed control. Containers per minute readout. Individual control of all settings. Automatic tare of weigh platform. Users / Maintenance / Supervisor Login. Statistical analysis of a shift run. Weigh units of measure. Weight or count mode.
Hopper Capacity

Supply hopper capacity of 5 cu. ft., other options available: hopper extensions and covers
Machine Dimensions

Feed pan widths from 4.00” to 16.00”, Platform scale sizes from 12.00” to 24.00”
Storage

100 product memory
Electrical Requirements

120V/1ph/60HZ standard(other voltages available)
Pneumatic Requirements

2 SCFM @ 60 PSI
Changeovers

Fix mounted - tools required
Options

Conveyor with indexing/automation may require container lift. Nylon coating and dimpled contact surfaces. Statistical package (USB). Various washdown and sanitary designs. Variety of fill accessories. Nozzles or chutes. Electric dribble feed gate. Heavy-duty vibrator. Additional lanes for increased production. Product level control to signal infeed device. Hopper cover. Integration with OEM. 316 stainless steel contact and quick removal parts available. Bag clamp.

All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.

Common Applications
