HP/14

Checkweighers

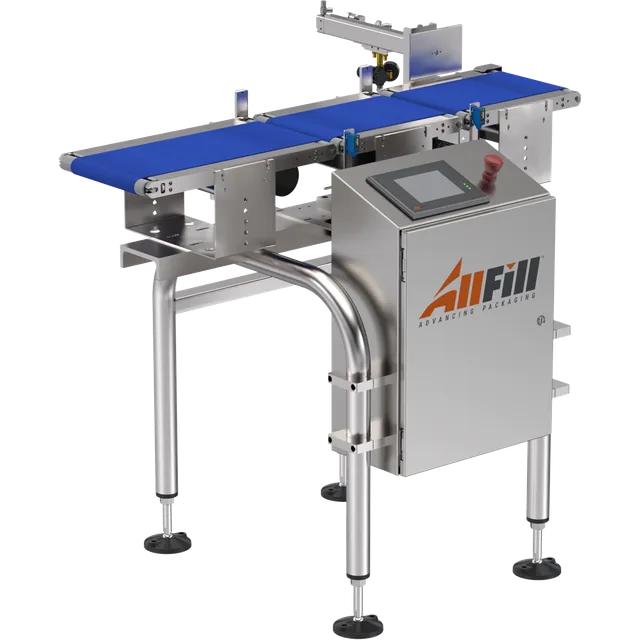

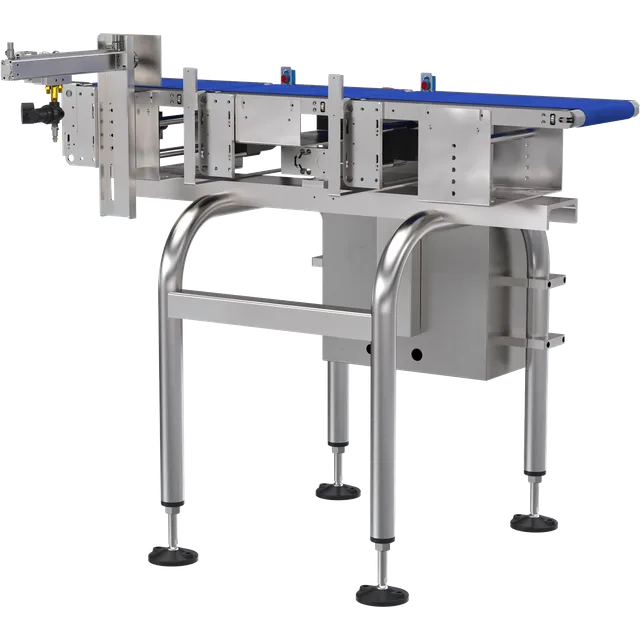

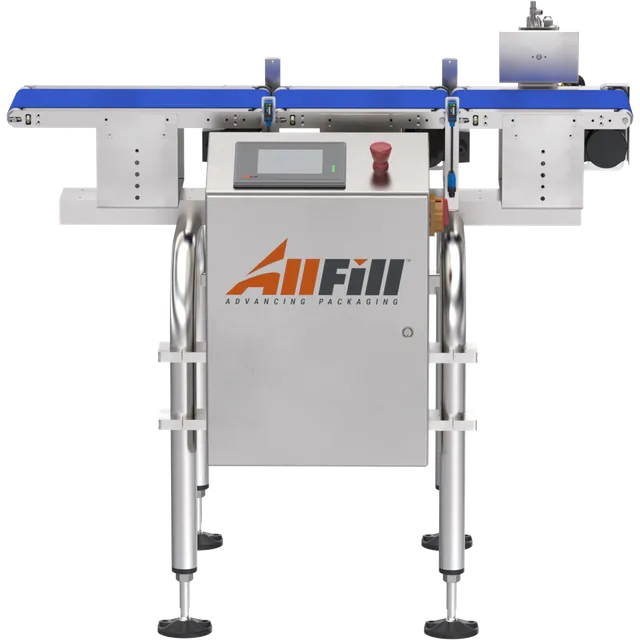

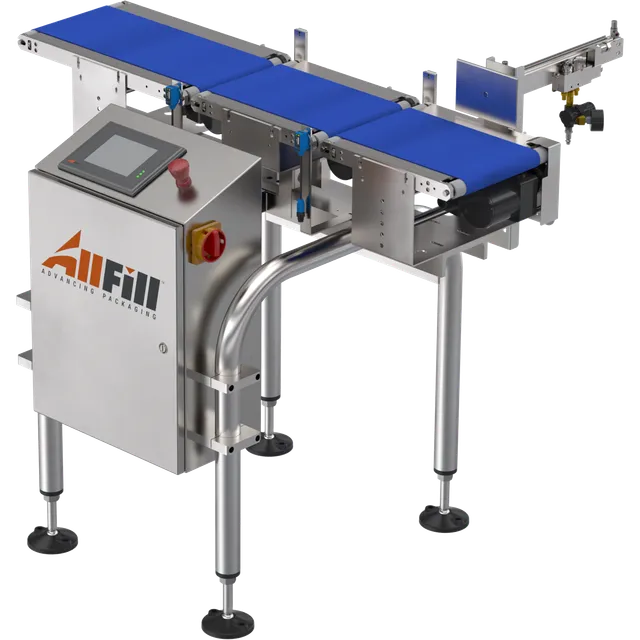

The High Precision checkweigher is capable of handling packages up to 8 lbs at a speed of 300 containers per minute. Due to use of an electromagnetic force restoration load cell, that comes standard with the HP/14, some applications can achieve accuracies of ± 100mg. Easily integrated with any filler, bagger, and metal detector, an All-Fill Checkweigher is the strategic packaging solution to avoid product waste and increase efficiencies.

Get a quote

Specifications

Line Speeds

Up to 300 packs per minute
Accuracy

+/- .10g with certain applications
Package Weights

up to 8 lbs. per package
Package Dimensions

12 in wide by 24 in long; other sizes available
Construction

Stainless steel and anodized aluminum (standard)
Direction of Travel

Left to Right or Right to Left
Conveyor Belts

All Variable Speed, Up to 12” wide and up to 24” long, custom sizes available
Weight Indicator

3 light tower (standard), 5 light tower (optional), Others
Controls

Standard 10” touch screen HMI with embedded controller 100 program memory, 300 programs option
Control Mounting

Rear-mounted control box (standard) Front-mounted, pedestal, and rotated 180° (optional)
Data Output

RS-232, ethernet, or USB
Reject Devices

Air blast, bopper, pusher, signal (only), swing gate, or special reject devices available
Reject Location

Outfeed conveyor or Remote
Reject Direction

Front, Rear, or Special
Electrical Requirements

110V Single Phase, 60 HZ
Pneumatic Requirements

80 PSI/4 SCFM
Options

Special Construction; explosion-proof, wash down, and more. Container transfer: roller or dead plate or timing screw, guide rails
Feedback

Contact closure, digital, single/dual head filler, or custom

All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.
