Top & Bottom Series

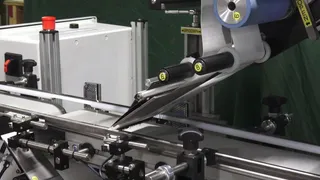

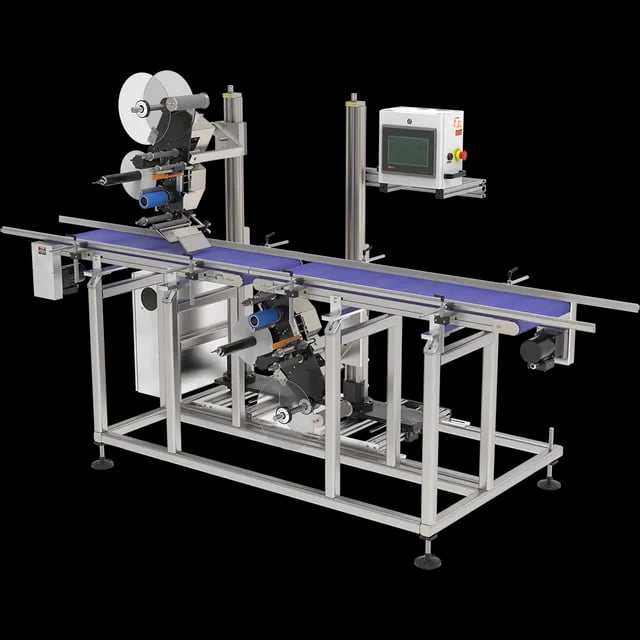

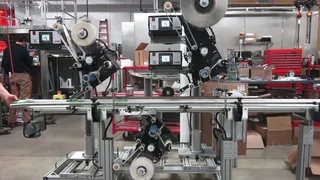

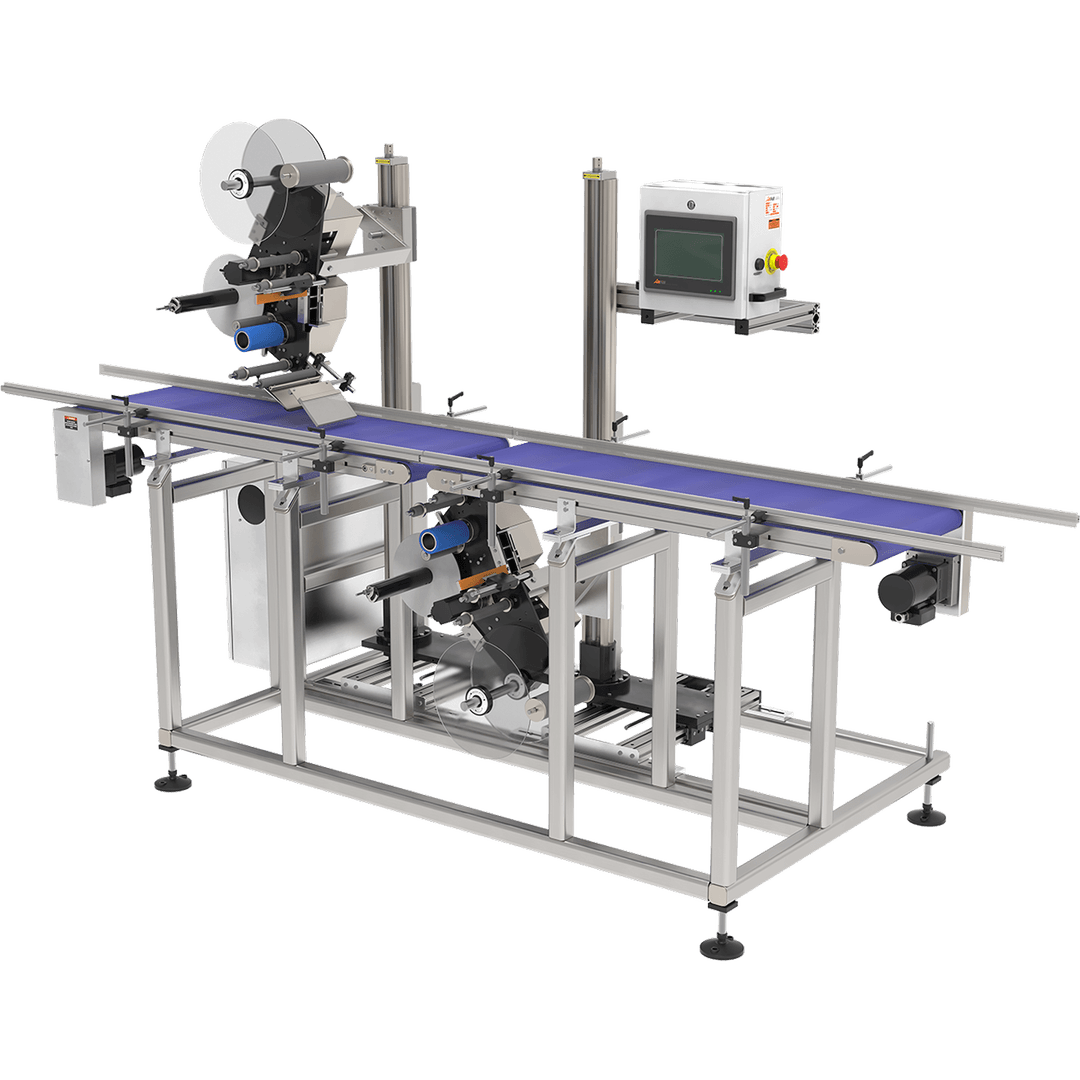

The Top/Bottom Labeler is a system designed to apply pressure sensitive labels to the top and/or bottom panels of flexible or rigid products or containers. A height adjustable post allows it to label products from empty bags to full boxes. All-Fill labeling equipment has a variety of options including semi-automatic and automatic machines, featuring touch panel controls for quick and easy changeovers. There are also economical Top/Bottom Labelers that are designed for limited volume production lines or start-up operations. We reduce the need for change parts with an open frame design that features a fully adjustable and versatile machine.

All of our Top & Bottom Labeling Systems are designed with ease of operation in mind. All adjustments to the label and label placement can be made on the fly, without interrupting the machine's operation. Label changeover and minor adjustments may be made without the use of tools.

Get a quote

Specifications

  • Label Sizes
    Up to 4" standard with options available for 6, 8 and 10, custom labeling heads up to 18”
  • Production Rates
    Variety of speed options available, Up to 300 ppm
  • Tool Size Changeover
    Tool-less changeovers, change parts may be required to accommodate different containers
  • Machine Dimensions
    Table Top equipment approximately 3' w 2' deep 3' tall
  • Roll Diameter
    Standard 12", options available for 16", 18" & 20"
  • Electrical
    120 VAC Single Phase, Optional 220 Single or 3 Phase
  • Pneumatic
    When required 60 PSI, @ 3 SCFM
  • Standard Features
    Stepping motor drive with color touch panel controls for ease of set-up, Conveyor options include dual conveyor and side-mounted hugger belts, Scaled head post for easy adjustment of applicator height
  • Options
    Semi-automatic and automatic options, Clear label sensor, required for transparent labels, Fixed and variable speed conveyors, Lead screw adjustment with scales for the in and out position of the labeling head, Complete alarm package to include end of web, low label, and broken web. Also available a missing label on web alarm, A variety of date lot coders, Inspection station and reject systems, Print & apply packages available, Many other options available

All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.

Common Applications

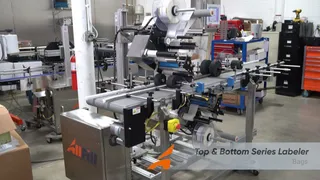

  • Bagged Goods

  • Boxed / Panel Goods

  • Wrapped Items

  • Straight / Tapered Buckets

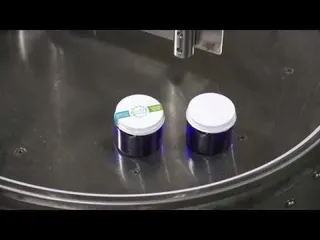

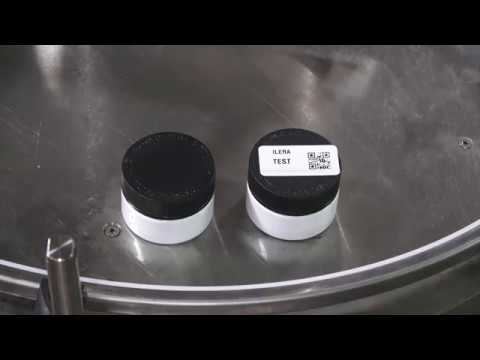

  • Top Labels

  • Tamper Evident Containers
