Multiple Auger Fillers
Fillers

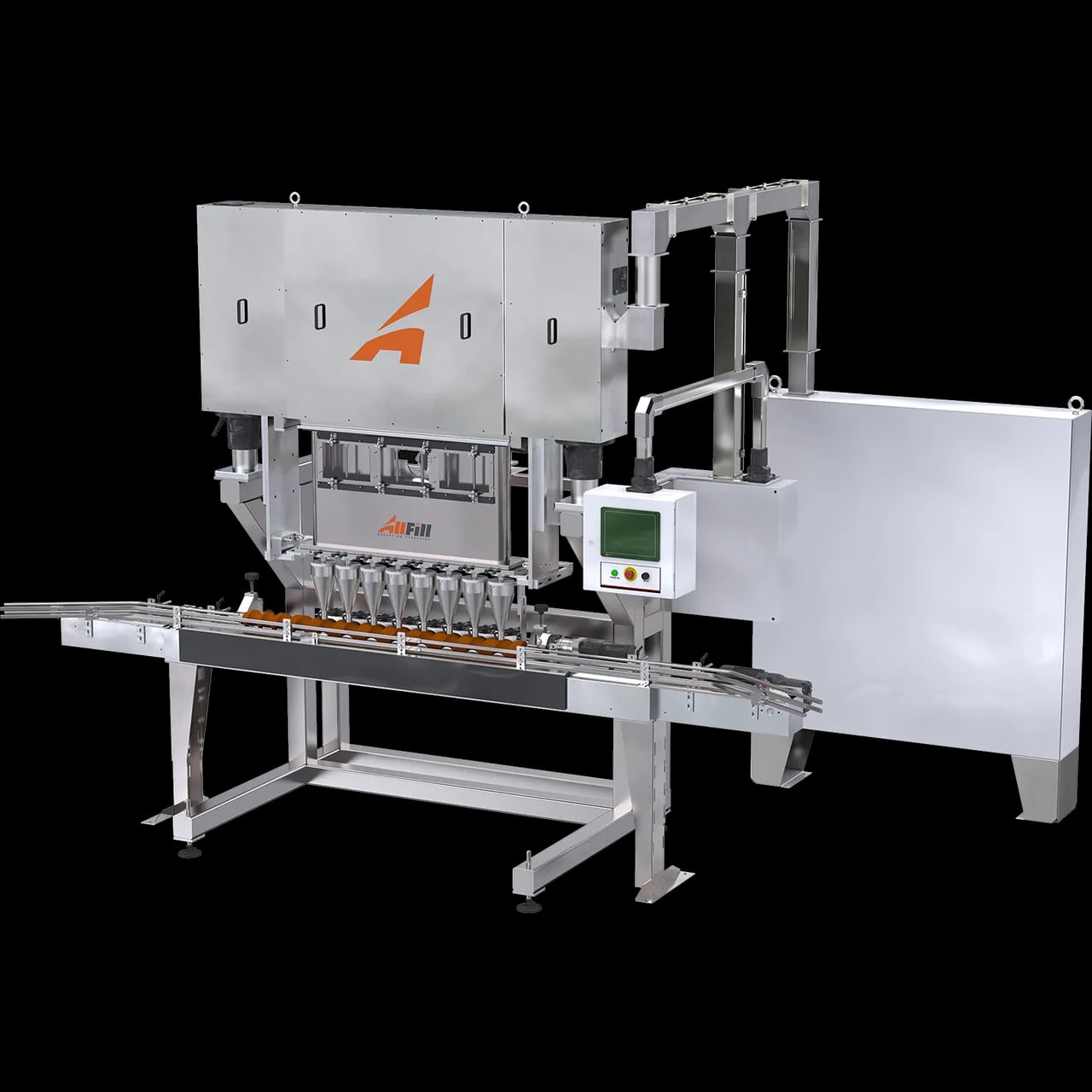

All-Fill’s multiple spindle auger systems provide controlled, multiple auger dispensing of product across production lines using cup machines, form-fill-seal equipment, thermoformers, and strip/pouch machines. Filling positions can range from 3 to 12+ across with a minimum center distance of 1 - 3/4”. Multiple spindle auger models are available in baseplate, cantilever, or overhead gantry mounting configurations to best suit the equipment or application. Individual servo drives are independently adjusted. 360-degree agitation is available (3 - 1/2” centers and up). Multiple auger models can be mounted and installed onto production equipment at All-Fill for thorough integration and testing.
Specifications
-
Controls10" Color HMI
-
Filling Positions2-12
-
Nozzle Center Distance1.75” minimum, custom available
-
Operating CyclesUp to 120 a minute dependent on number filling positions, application and fill size
-
MountingBaseplate, Cantilever, Gantry, Portable, Trolley
-
Contact PartsStandard 304 Stainless Steel. Optional 316 stainless steel
-
Control MountingWall mount or remote pedestal enclosure, machine mounted
-
OptionsHopper Agitation. Level Control. Motorized column jack. Compartmented hoppers for varied products. Weight feedback. Variable hopper agitation speed selection. Clear hopper viewport for product inspection and tooling adjustment. Overhead tracking to allow moving filler out of line for cleaning/maintenance.
All dimensions and specifications are subject to change without notice. Consult your sales representative or email us at info@allfill.com for exact information prior to purchase.
Common Applications
-
Fertilizer Pellets
-
Toner Powder
-
Cat Litter
-
Small Pet Food
-
Whole & Ground Coffee
-
Sugar
-
Jimmies & Sprinkles
-
Plant Foods
-
Food Powders
-
Plastic Granules
-
Ground Spices
-
Flake Spices
-
Fine Cut Tobacco
-
Flour Powder
-
Whole & Ground Pepper
-
Detergent Powder
-
Infant Formula
-
Cake Mix
-
Pancake Mix
-
Cement Powder
-
Cocoa Powder
-
Matcha Powder
-
Cosmetic Powder
-
Curry Powder
-
Protein Powders
-
Turmeric Powder
-
Parsley & Oregano
-
Grains
-
Seeds
-
Chia Seeds
-
Grass & Fennel Seeds
-
Salt Products
-
Rice Products
-
Lentils
-
Breadcrumb
-
Brown Sugar
Videos
-
Multiple Auger Filler - Model M/SV/600/5
Type: Automatic Multiple Auger Filler
Model: M/SV/600/5
Application: Tea
Industry: Food & Beverage -
Multiple Auger Filler - Model M/SV/600/4
Type: Automatic Multiple Auger Filler
Model: M/SV/600/4
Application: Fruit
Industry: Food -
Multiple Auger Filler - Model M/SV/600/2
Type: Automatic Multiple Auger Filler
Model: M/SV/600/2
Application: Ground Coffee
Industry: Coffee -
Multiple Auger Filler - Model M/SV/600/12
Type: Automatic Multiple Auger Filler
Model: M/SV/600/12
Application: Powder
Industry: Powder
Feature: Moving Trolley -
Multiple Auger Filler - Model M/600/6
Type: Automatic Multiple Auger Filler
Model: M/600/6
Application: Powder
Industry: Powder -
Multiple Auger Filler - Model M/SV/11
Type: Automatic Multiple Auger Filler
Model: M/SV/11
Application: Powder
Industry: Pharmaceutical
